Gannomat Selekta 252 Dowel Inserter, 7 to 20mm long, 6-12mm Dia., Closed Glue System

Gannomat Selekta 252 Dowel Inserter, 7 to 20mm long, 6-12mm Dia., Closed Glue System

As taken from service

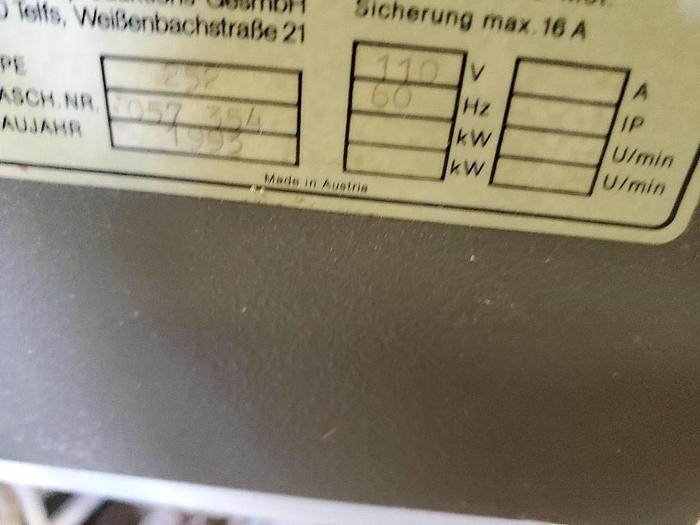

Mfg. 1993

110v

• Elect./Voltage: 110 V, 60 Cy, 1 Ph

• Dimensions: 26″ L  x  26″ W  x  44″ H

• Weight: 240 Lbs (estimate)

• Dowel sizes from 7 to 20 mm; stays constant for every dowel; dowel sizes 6 to 12 mm and length from 25 to 50 mm possible; dowel feeding by maintenance-free vibrator.

• Mechanical system of dowel selection for dowel diameter and dowel length; controlled by electronic limit switches with immediate error indication of incorrect dowel length (+/- 2mm);

• Immediate ejection of the defective dowel by pressing the error light button. Fully automatic maintenance-free electronic controller with program selection of cleaning, gluing, and gluing / inserting.

• 8-position selector switch regulates glue amount by means of an electronically controlled timer; essential for different dowel size and diameter and various glue viscosity.

• Closed glue system with conical seated front nozzle; eliminates hardening of the glue in the nozzle and need for routine cleaning of the glue system.

• 6 bar high-pressure system for glue injection for precise glue stream and clean dowel inserting.

• Glue/Water selector switch for rinsing the system; control light indicates low glue in glue pot.

• Maintenance-free pistol mechanism uses staple gun technology, repeat gluing/inserting by constant depression of the pistol trigger; revolver magazine of pistol provides constant supply of dowels;

• Dowels not inserted to the bottom of the hole but are regulated by the length outside the panel.

• No splitting of thin material or glue forced back out of the hole; no panel kick back or clamping the work piece or backstop is necessary; easy changing of machine or gun for use with different dowel diameter by modification kits. Will run dowel diameters of 6 mm, 8 mm, 10 mm, 12 mm dowel lengths: 20 – 50 mm (optional).
