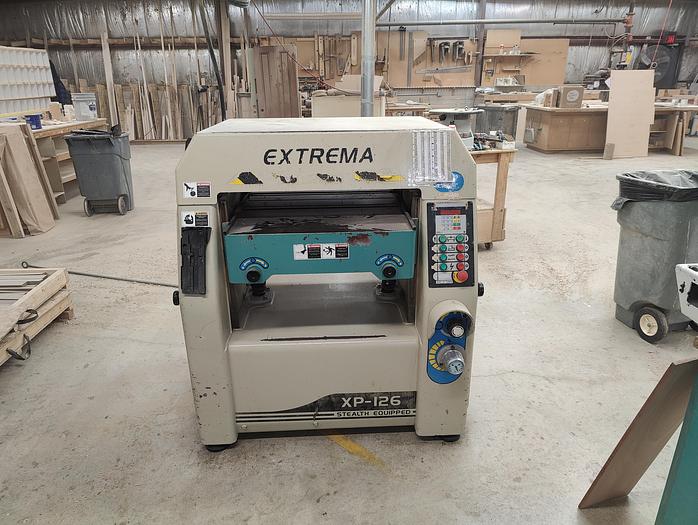

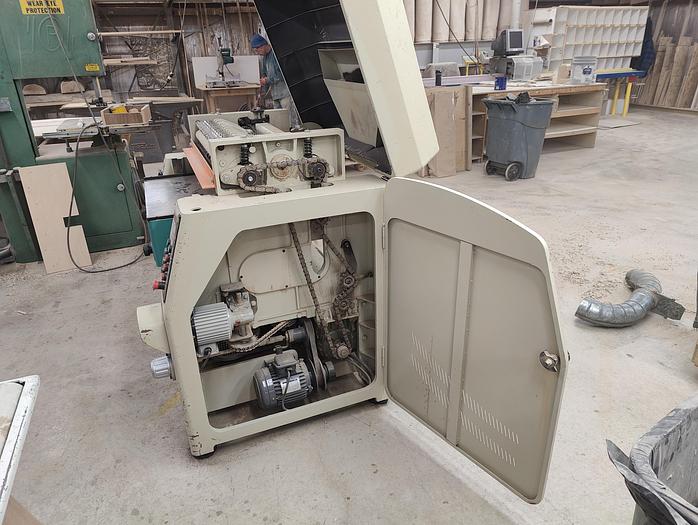

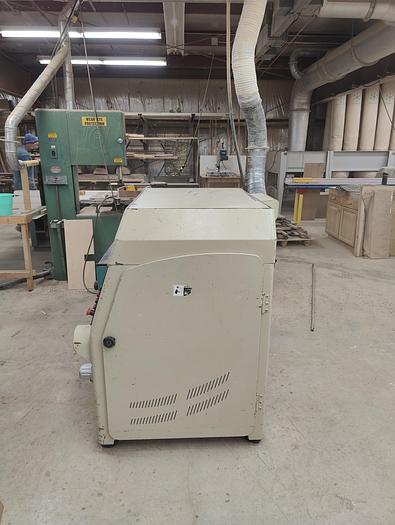

Extrema 26" Helical Head Planer, XP-126A, 2004, 20HP, 3PH, 11.75" Thickness Cap., 20-75Ft/Min. Feed

Extrema 26" Helical Head Planer, XP-126A, 2004, 20HP, 3PH, 11.75" Thickness Cap., 20-75Ft/Min. Feed

Extrema’s Series XP-126 is available with a helical insert Cutterhead, infeed roller, heavy duty internal drive system, and a PLC controler.

The following specifications are believed to be correct off of current model specs provided by manufacturer, but may need to be further verified.

• 11-3/4” thickness capacity
• High Horsepower: 20 HP, 3PH motor
• 6000 RPM cutterhead
• Powered top and bottom bed rollers

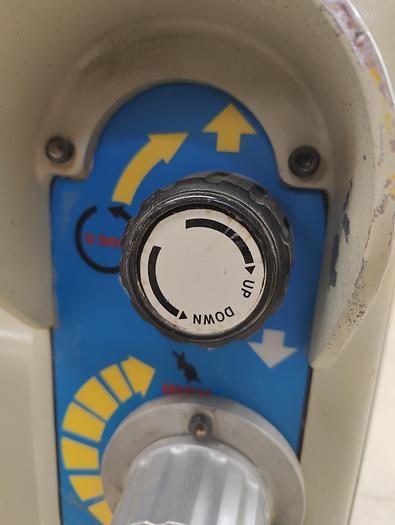

• Motorized table elevation

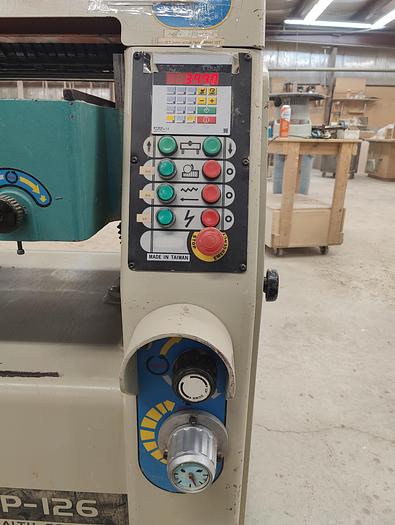

• Digital thickness controller
• Solid cast-iron construction
• Triple v-belts

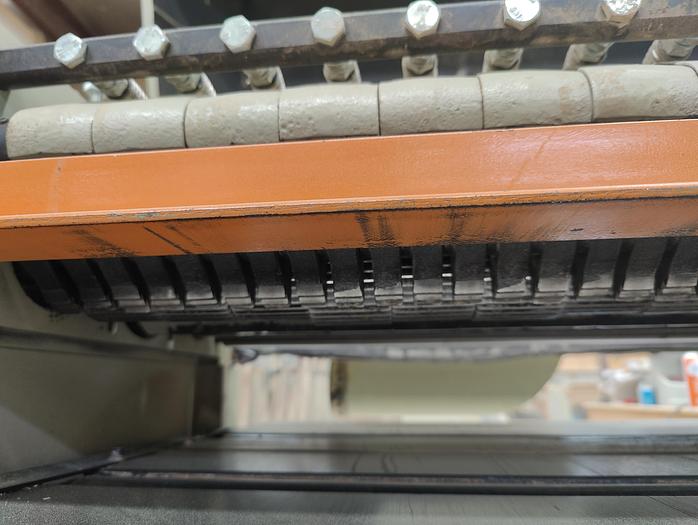

• Sectional chipbreakers
• Externally adjustable front and rear bed rollers
• Sound deadening enclosure

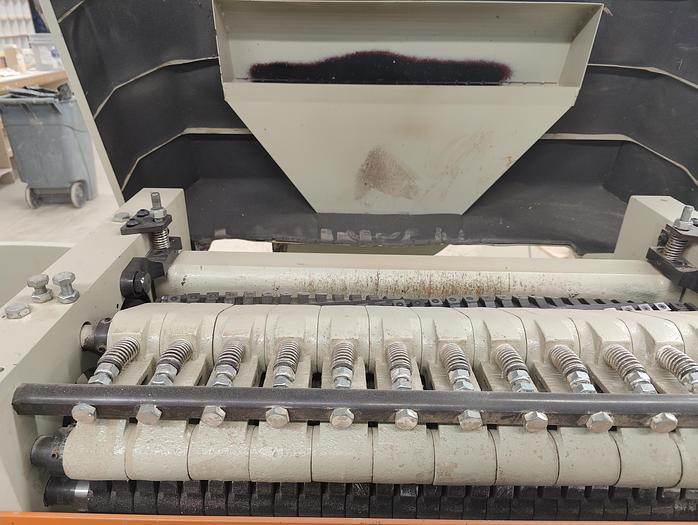

• Powered top and bottom feed rollers

Horsepower:  20 HP

Voltage:  230V / 460V

Phase(s):  3 PH

Width:  26"

Main Horsepower:  20 HP

Feed Horsepower:  1 HP

Elevator Horsepower:  0.5 HP

Max Thickness:  11.75"

Min Thickness:  0.375"

Max Cut:  0.375"

Min Length:  10.5"

Cutterhead RPM:  6000

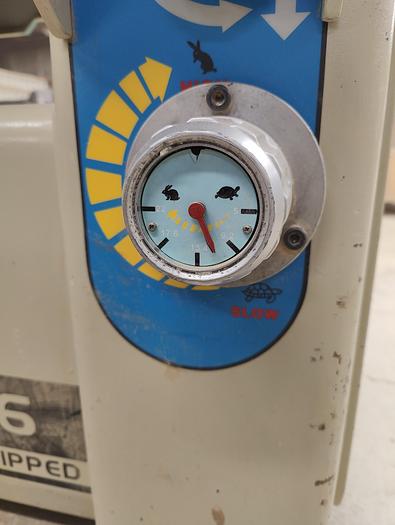

Feed Speed:  20-75 ft/min

CFM Requirements: 1100

Thickness Adjustment:  PLC Controller

Bed Roller Adjustment:  External Power

Bed Rollers:  Top and Bottom

AMPS (230V/460V):  52A / 26A

Weight:  2675 lbs
