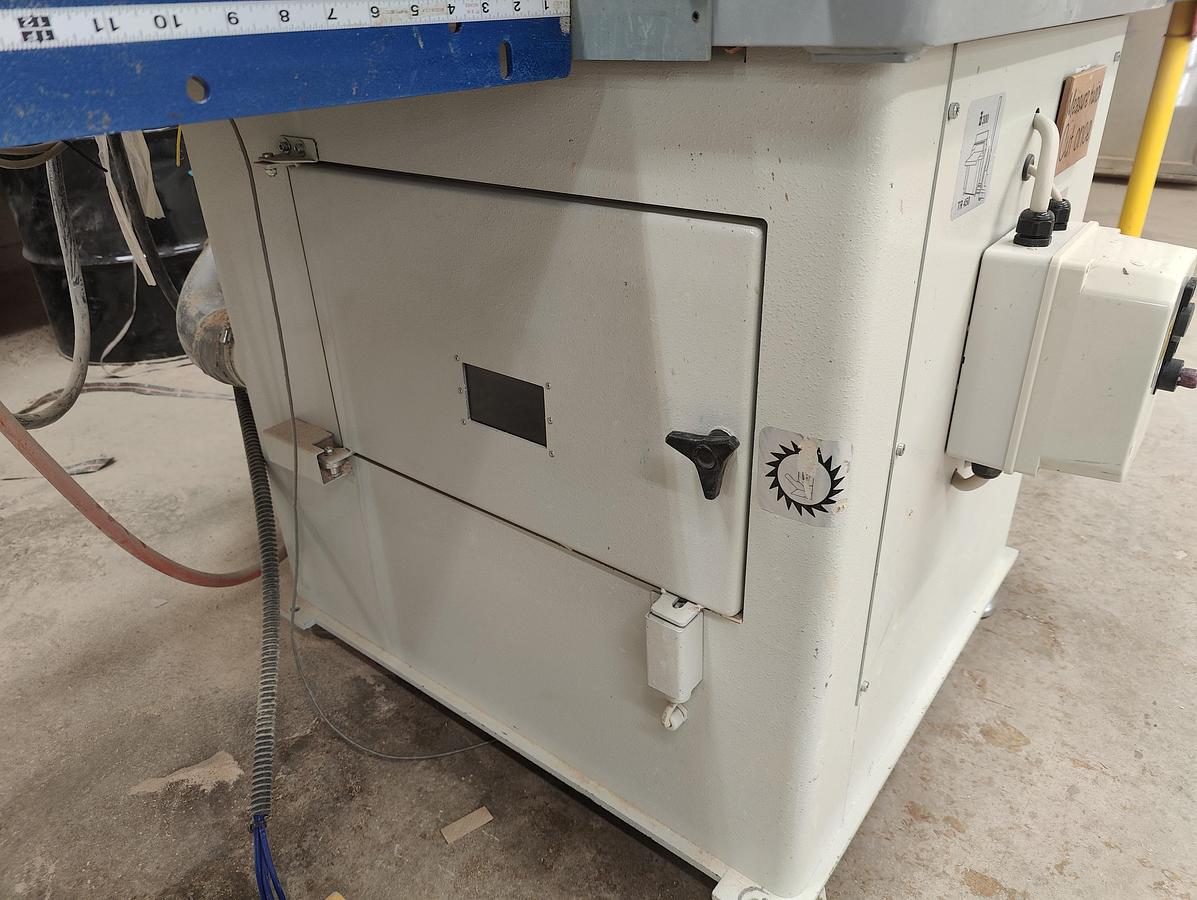

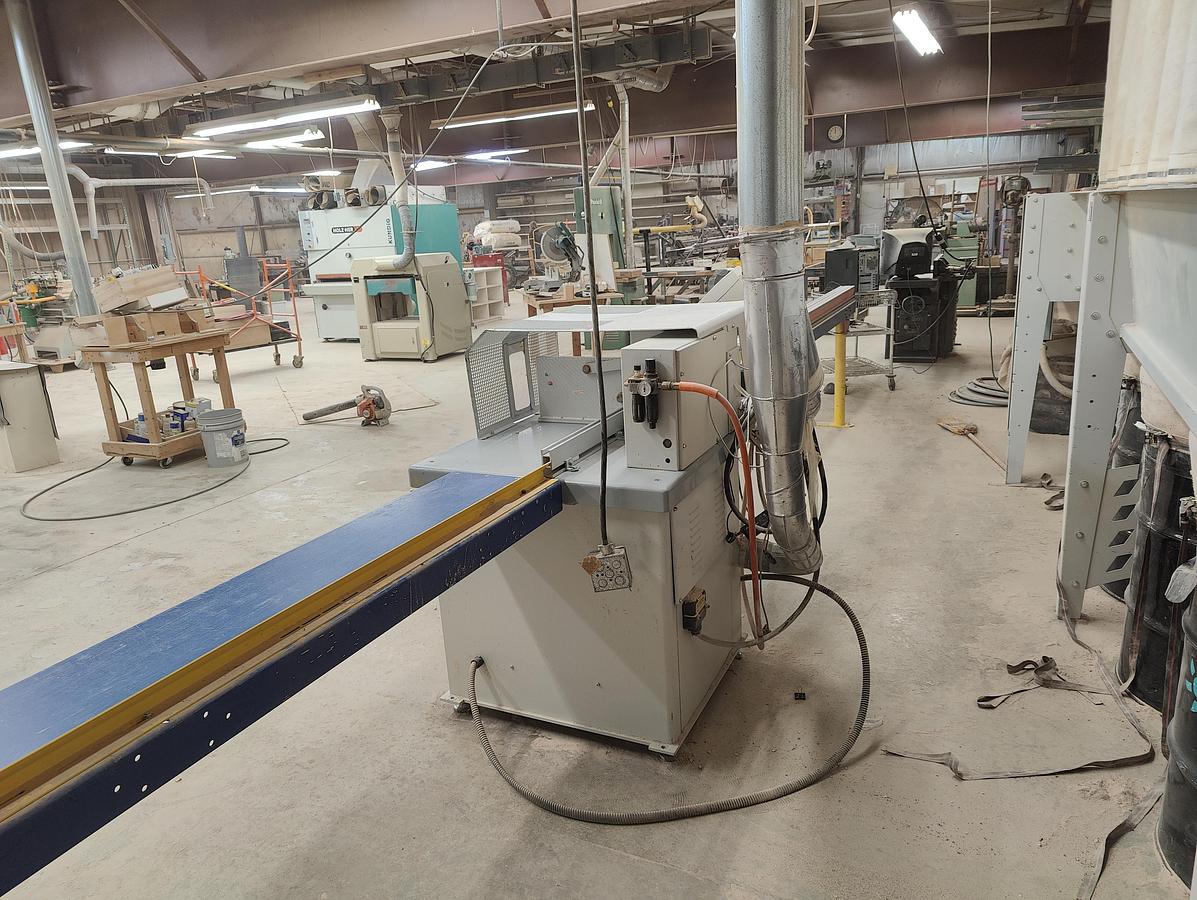

Stromab TR450 Upcut Saw With Tigerstop TS10 Digital Stop w/optimizing, 5.5HP, 220V, 3PH

Stromab TR450 Upcut Saw With Tigerstop TS10 Digital Stop w/optimizing, 5.5HP, 220V, 3PH

Stromab TR450 Cut-off saw technical data

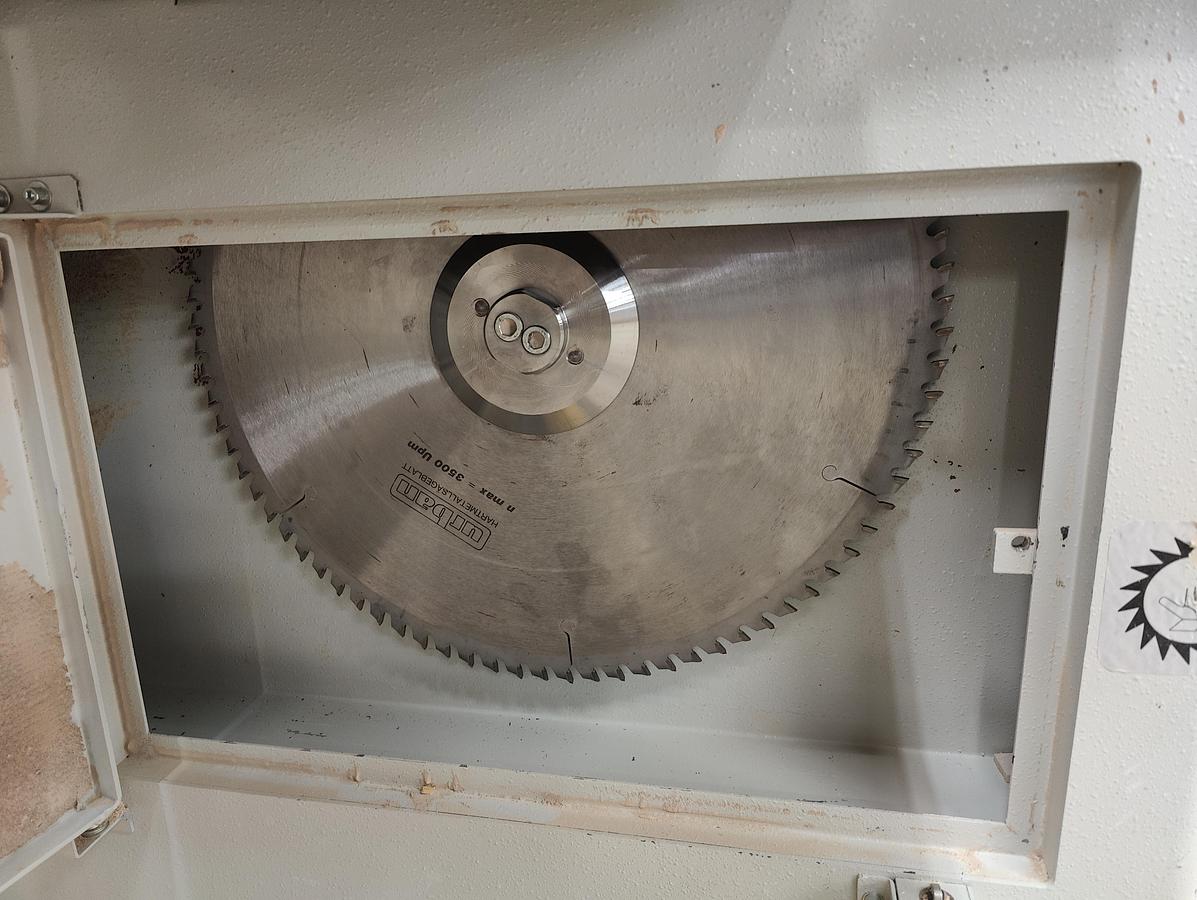

Blade diameter                 450 mm

Blade rotation speed      3400 rpm

Blade motor power kW 4 (HP 5,5)

Working table height 850 mm

Working table inclination 8°

Minimum cutting cross-section 20 (W) x 10 (H) mm

Max cutting capacity 330 mm (W) a 25 mm (H) - 250 mm (W) a 100 mm (H)

Max operating pressure      6-8 bar

Extraction outlets 2 x Ø100 mm

Weight 310Kg

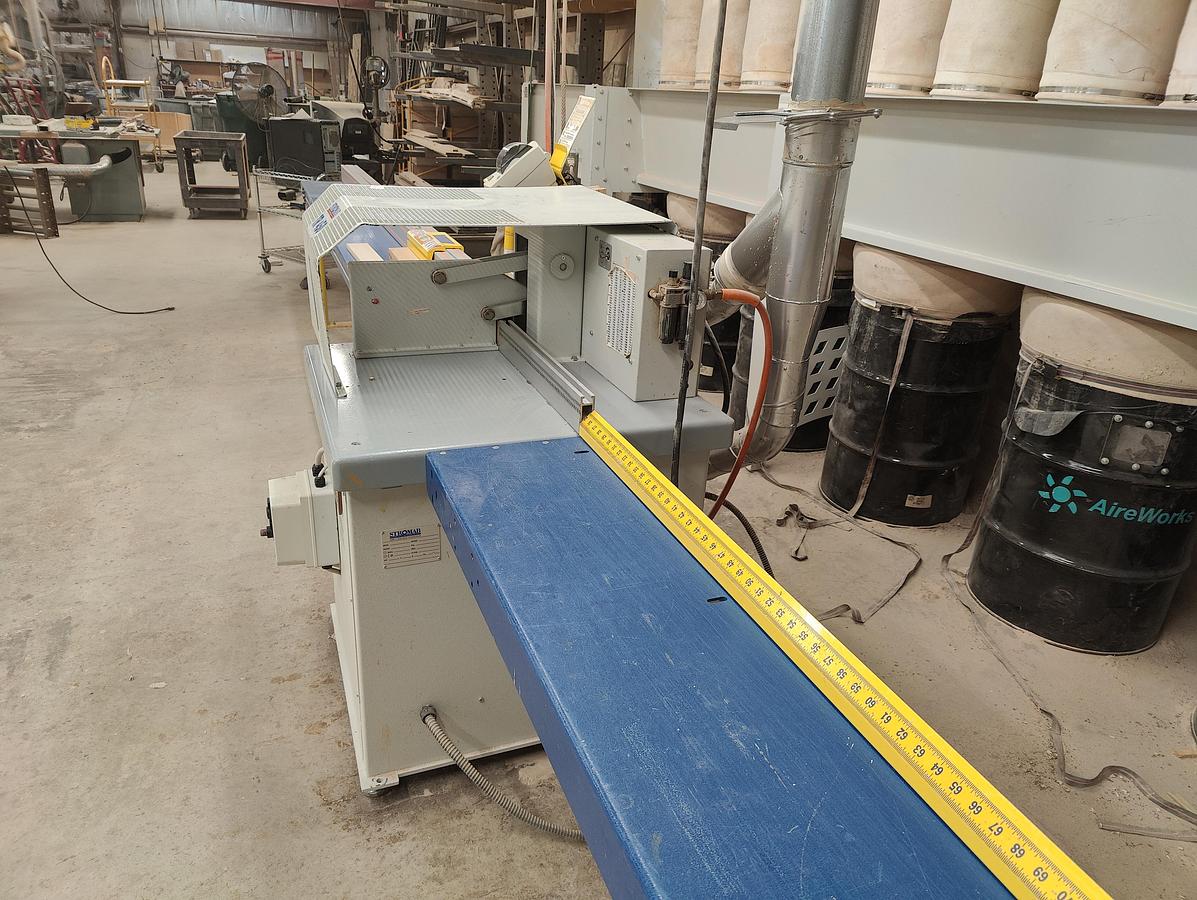

Tigerstop TS10 Digital Stop with Optimizing

2004 Model Year

10ft Capacity

Optimizing

Had been integrated with Stromab via regular standard interlock kit.
