Viet Opera R1 Robotic Sanding Machine, Artisan Products Sanding, 850mm Width Cap, 60mm Thickness Cap., 2-10M/min., 3 Phase

New Machine! Please note our sales and service area is limited to Wisconsin by Viet.

Automated artisan skills

Opera R is the robotic sanding machine that is unique, offering levels of machinability, precision and quality never before obtained with the technology of this sector.

AUTOMATED MANUAL SKILLS

Viet has always focused on technological development, offering the sensitivity and flexibility of skilled and complex machining operations with automated solutions, which eliminate the risk of human error, reduce production costs and increase efficiency. Machining without limits Freedom to machine the panel ‘with the grain’, in any orientation, increasing the number of contact points to produce ultra- high quality surface finishes.

Machining without limits

Freedom to machine the panel ‘with the grain’, in any orientation, increasing the number of contact points to produce ultra- high quality surface finishes.

Optimum cleaning of the panel and the work environment

The Dust Free system removes all dust during the machining operation itself. It's a device housed in the robotic unit and designed to improve the quality of the finish and the work environment.

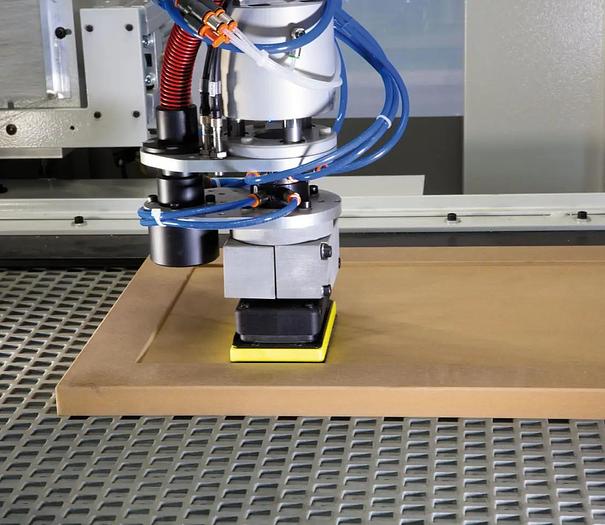

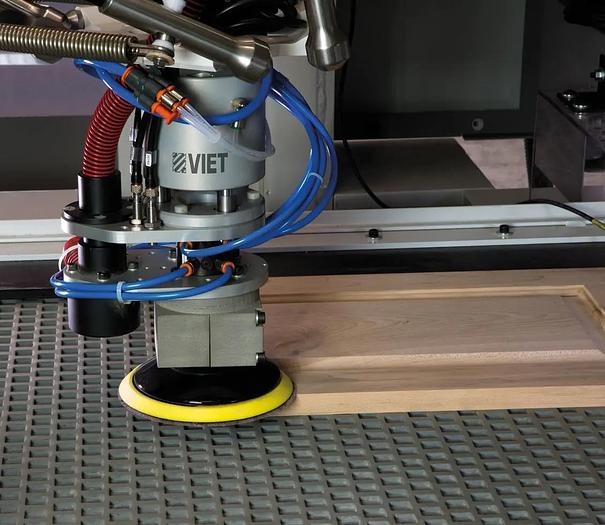

OPERA R seems to be a typical wide belt sander.

Instead of the usual wide belt though, one to two robot sanders are built into this machine!

Through an upstream 3D-scanner the machine control will transmit the surface profile.

This selects the respective sanding tool and the right motion sequence of the robot arms.

2015 the OPERA R has been brought to the market.

Standards

• IPC (industry-PC) machine control and touchscreen monitor
• Tool Changer with 8 spots
• Dust free system for dedusting
• Cleaning box for cleaning and dressing of the sanding tools

Technical data

Working range of usage: 850 mm

max. workpiece thickness: 60 mm

Feedrate: 2 - 10 m/min
