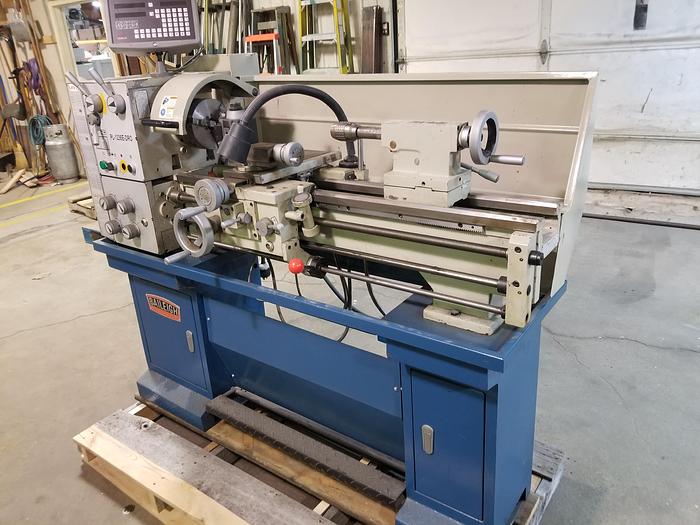

Baileigh 12" x 36" Digital Readout Metal Lathe, PL-1236E-DRO, 2HP, 220V, 1 Phase, 2015, Cleaned, Checked

Baileigh 12" x 36" Digital Readout Metal Lathe, PL-1236E-DRO, 2HP, 220V, 1 Phase, 2015, Cleaned, Checked

Just in from one owner school, to be cleaned and checked.

Integrated digital readout (DRO) helps you get repeatable results

Quick-change tool post makes tooling changes more efficient and helps you save time

Gear system allows for taping, turning, and polishing

All ways are ground and hardened to ensure long life

Runs on 220-volt single-phase power and 70 to 1,400 rpm variable speed - Capable of standard and metric

threading

3-jaw and 4-jaw chucks can hold both square and rounded materials

Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy

Facing plate lets you shape materials that are large but not long - Bolt your metal to the plate to keep it

square and symmetrical

Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed

Foot brake helps keep your shop safe and Halogen work light comes standard

Specifications

More Information

Stock Number BA9-1016617

Distance Between Centers (In.) 36"

Input Power 220V / 1-phase

Leadscrew Thread Pitch 8 T.P.I.

Length of Gap (In.) 6"

Swing (in) 12"

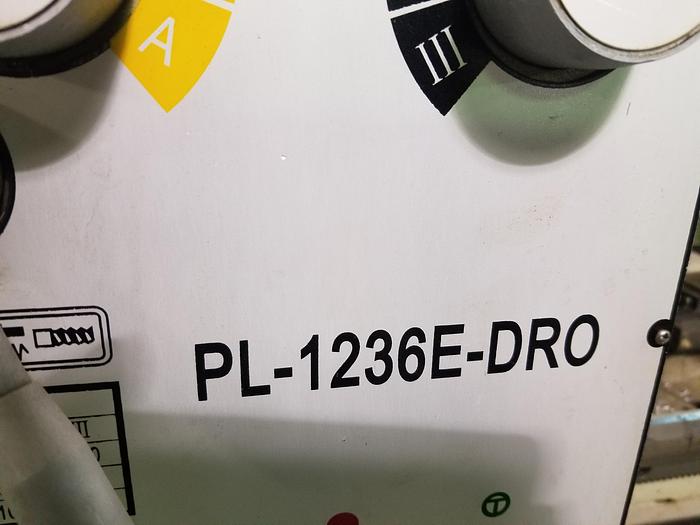

Model Number PL-1236E-DRO-1.0

Nose Radius (In.) D1-4"

Quick Change Collet Size (Mm.) .625" x .625"

Range of Cross Feeds (IPR) 0.007" – 0.0187"/rev

Range of inch Threads (TPI) 4 - 56T.P.I.

Range of Longitudinal Feeds (IPR) 0.002" – 0.0548"/rev

Range of Metric Threads 0.4 – 7 mm

Shipping Dimensions (L x W x H) (In.) 69x44x62

Spindle Bore (In.) 1.50"

Spindle Diameter (In.) 1.250"

Spindle Taper Morse #3

Spindle Travel (In.) 4"

Weight (Lbs.) 1420
