CANTEK D405ANC 1-AXIS SLIDING TABLE SAW

Why a Cantek D405ANC 1-Axis Sliding Table Saw?

• Programmable rip fence saves time & provides high level of accuracy and repeatability
• Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement
• Powerful 7.5 HP main motor and separate 1HP scoring motor

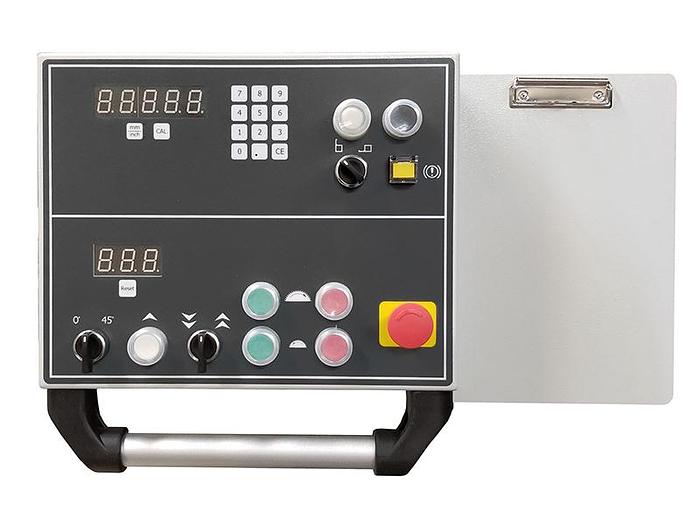

• Ergonomic eye level control panel for setting the rip width, blade height, and blade angle along with on/off switches for the main and scoring motors
• Accurate crosscut miter fence for fast length and angle setting

Key Advantages

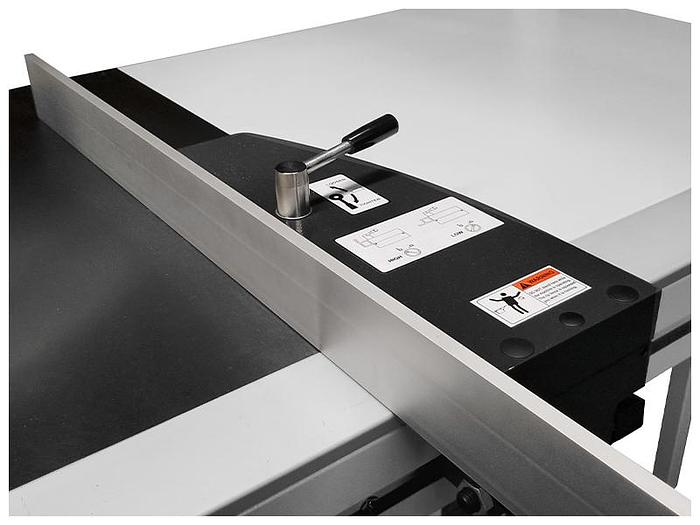

• Programmable rip fence with maximum cutting width of 51″ by means of a precision ball screw
• Motorized blade rise/fall
• Motorized blade tilting with electronic angle display on control panel
• Overhead control panel can be adjusted for operator convenience

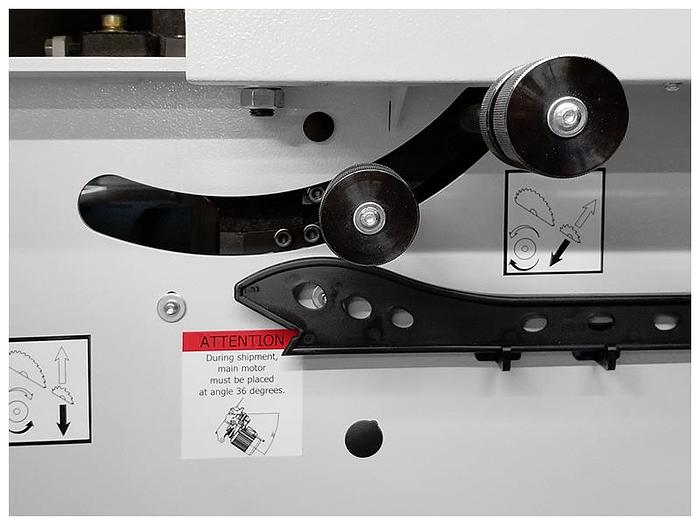

• Convenient external manual scoring adjustment
• 7.5 HP main motor with 1HP scoring motor
• (3) saw blade speeds for optimum cutting results in various materials

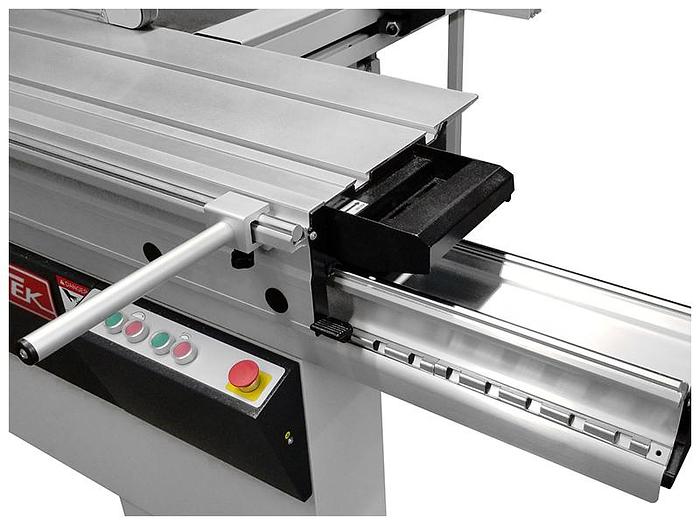

• Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides

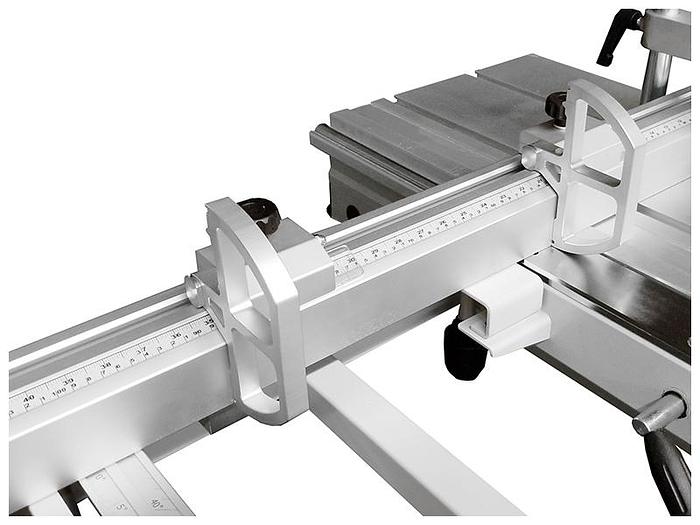

• Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
• Solid cast iron main table which is ground and polished

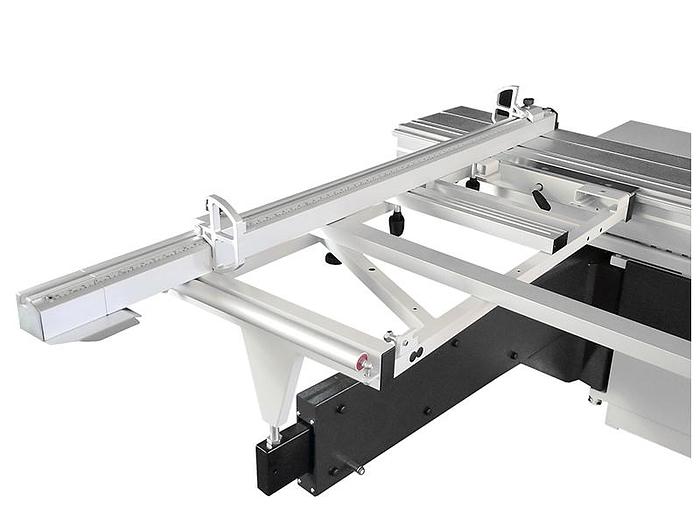

• Heavy-duty outrigger for strong support of workpiece during cutting operations

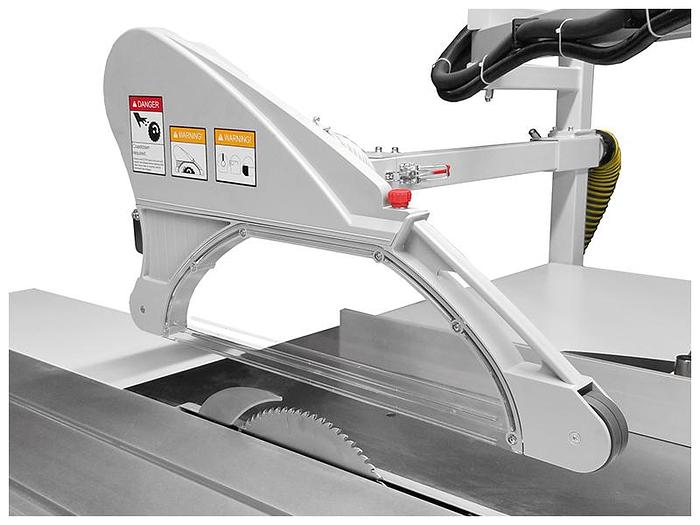

• Overhead CE blade guard with dust port
• Complete with eccentric clamp and wedge for solid wood cutting

Specifications

Metric

Inch

Sliding table dimensions

3200 x 395mm

126 x 15.5″

Cast iron table dimensions

548 x 896mm

21.6″ x 35.3″

Extension table (rear)

952 x 896mm

38.7″ x 35.25″

Extension table (front)

830 x 320mm

32.7″ x 12.6″

Table size

1500 x 1726mm

59″ x 68″

Main saw blade (Max.)

400mm

16″

Main saw bore dia.

30mm

Max. cutting height @ 90o (355mm)

105mm

4.13″

Max. cutting height @ 90o (400mm)

130mm

5.12″

Max. cutting height @ 45o (355mm)

70mm

2.75″

Main motor power

7.5 HP

Main blade speed

3000 / 4000 / 5000 RPM

Scoring blade dia.

120mm

Scoring blade bore dia.

20mm

Scoring blade motor power

1 HP

Scoring blade speed

8000 RPM

Max. rip cutting width

1300mm

51″

Cutting width adjustment

Motorized

Saw blade tilting adjustment

0~45o (Motorized)

Scoring saw adjustment

Manual

Dust collection outlets

120 / 100mm

4.72″ x 4″

Machine shipping dimensions

2110 x 1150 x 1120mm

83″ x 45.25″ x 44″

Machine NW / GW

558 / 649 kgs

1228 / 1428 lbs

Sliding table shipping dimensions

3480 x 490 x 370mm

137″ x 19.3″ x 14.6″

Sliding table NW / GW

141 / 173 kgs

310 / 381 lbs

Rip fence shipping dimensions

1860 x 320 x 330mm

73.25″ x 12.6″ x 13″

Rip Fence NW / GW

41 / 52 kgs

90 / 115 lbs

Machine total weight NW / GW

740 / 874 kgs

1628 / 1923 lbs

Electrics

230/3/60 =26.20 Full total Amps

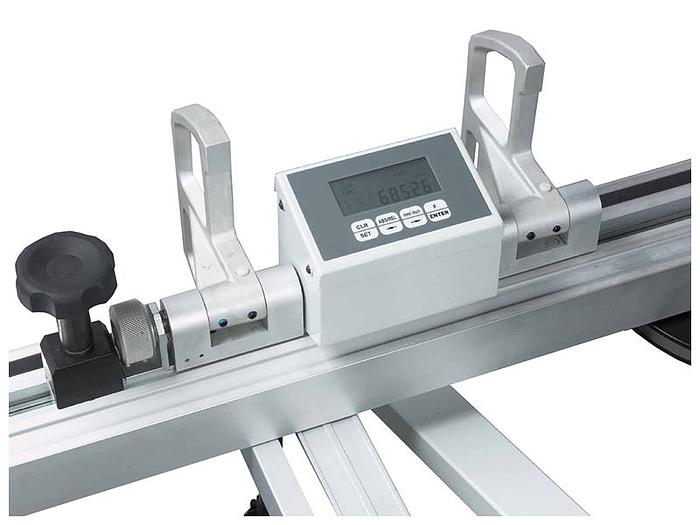

• Optional crosscut fence with digital readouts for precise length setting

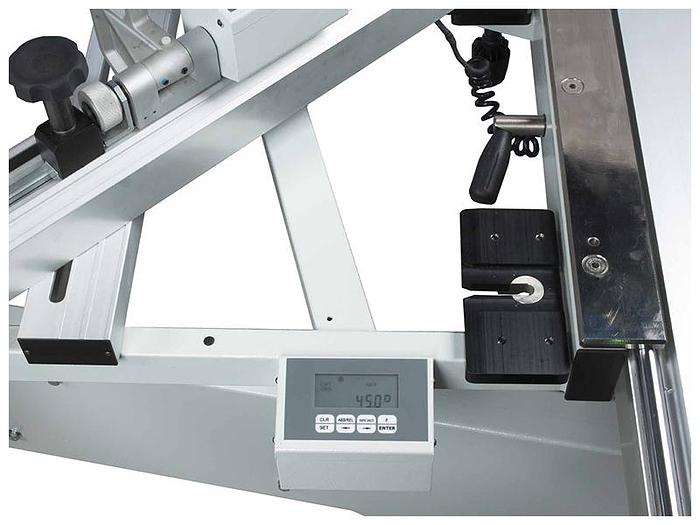

• Optional digital display for angle of crosscut fence for accurate miter cuts
