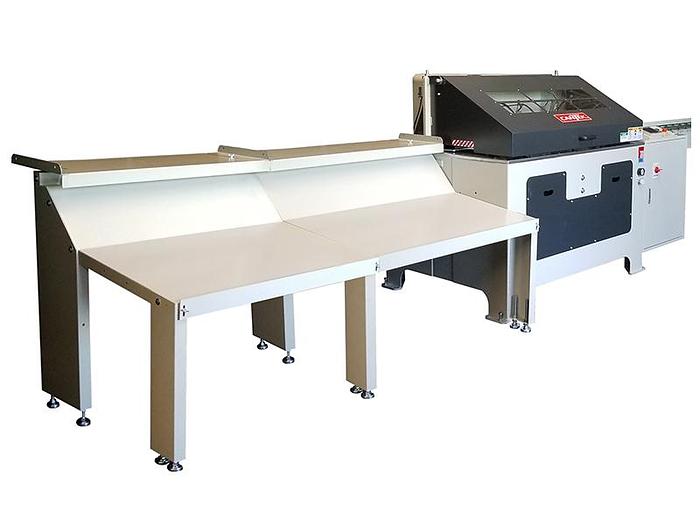

Cantek EM12 Continuous Throughfeed End Matcher, 10HP Motors, 3PH, 12" width Capacity, 1.38" Height Capacity

NEW

Cantek EM12 Continuous Throughfeed End Matcher, 10HP Motors, 3PH, 12" width Capacity, 1.38" Height Capacity

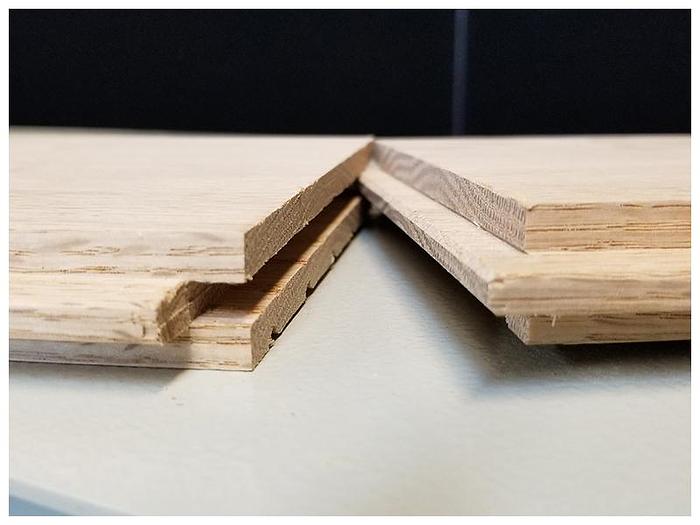

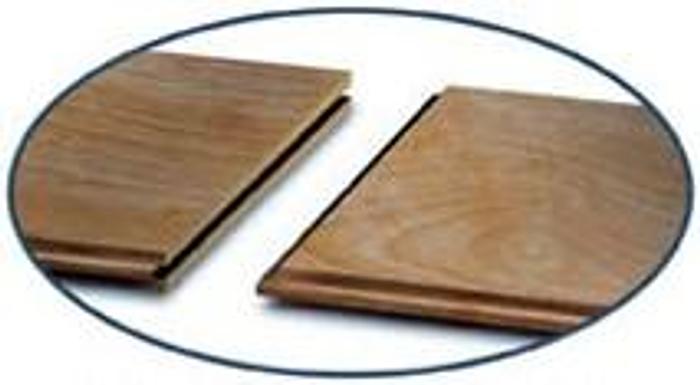

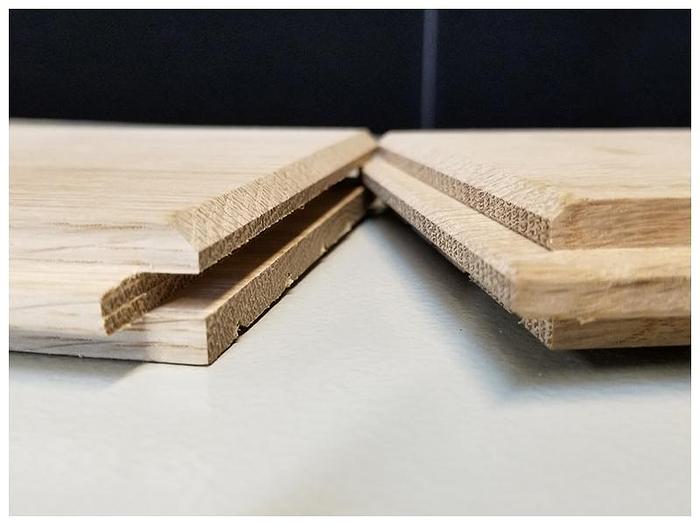

Designed for machining tongue & groove with or without v's on flooring and panel products

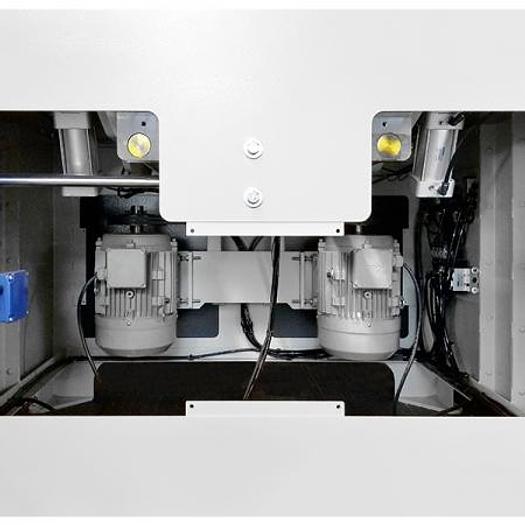

(2) 10HP cutterhead motors

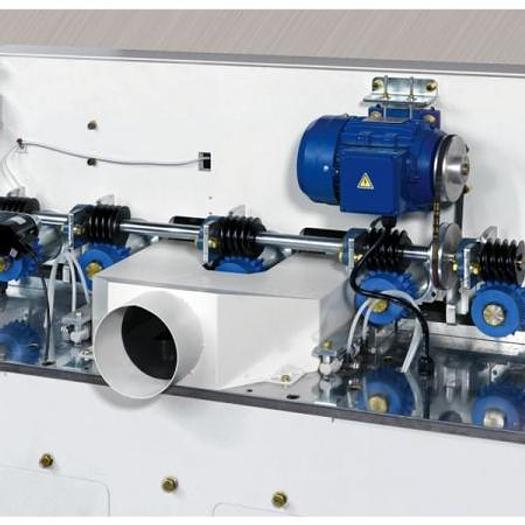

1HP feed system motor

1/2HP cutter drive motor

230V or 460V

1.6" - 12" width capacity

0.4" - 1.38" thickness

12" min. length

Max. length unlimited

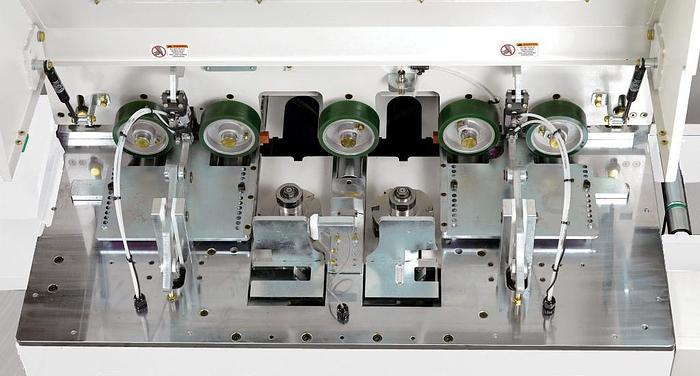

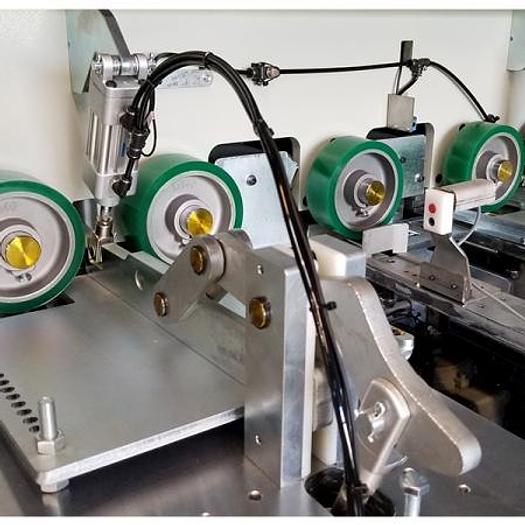

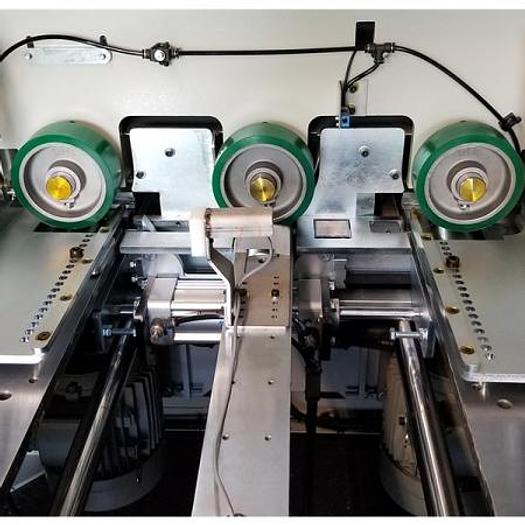

Top & side clamping

40mm spindle dia.

85PSI compressed air requirement

Dimensions 91" x 51.5" x 63"

Weight 2,530 lbs.

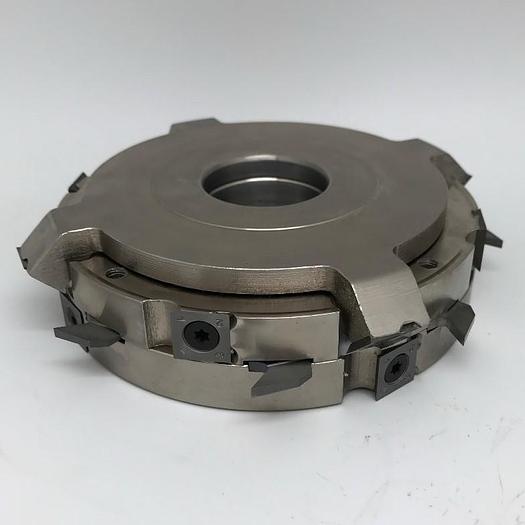

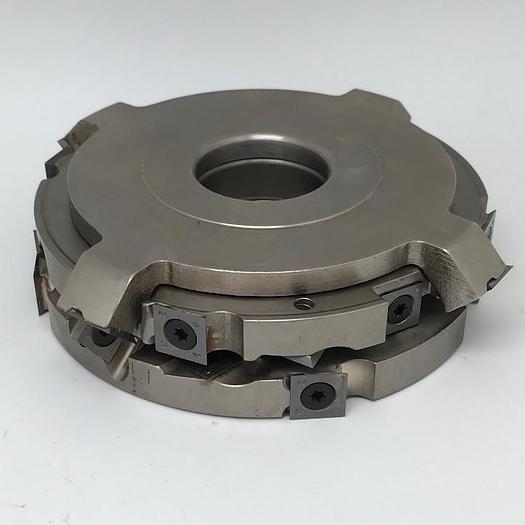

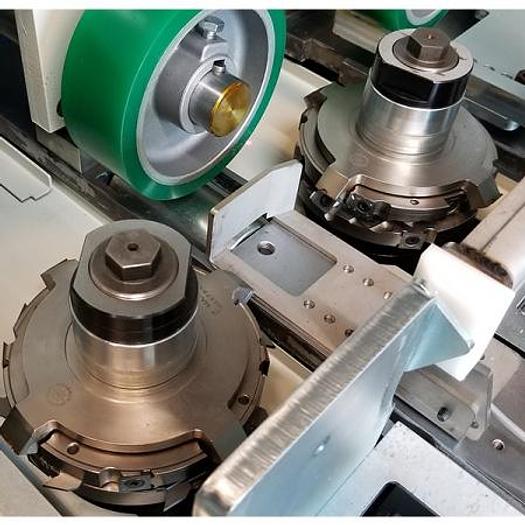

Includes 1 set - Carbide Insert type Tongue & Groove cutterheads

Options:

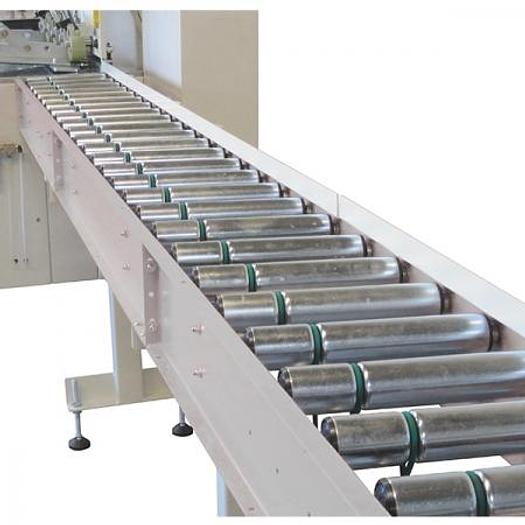

Increased Infeed Powered Roller Conveyor Length: 43” (1100mm) long section (per section) $ 950.00

Increased Outfeed Slide Table Length 43” (1100mm) (per section) $ 400.00

Deduct for Non Supply of Factory Cutterheads $ 2,040.00

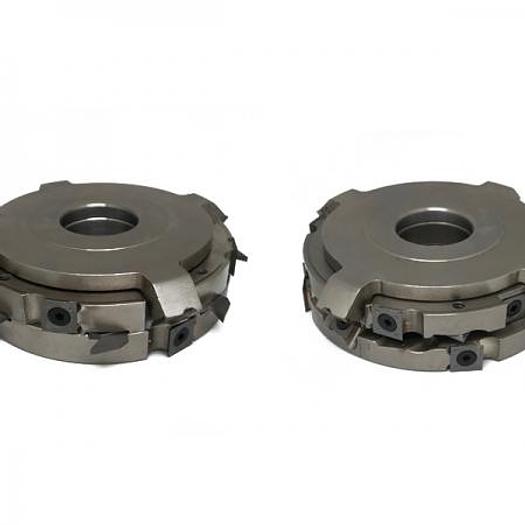

Additional set of Carbide insert Cutterheads (Left & Right) $2,710.00
