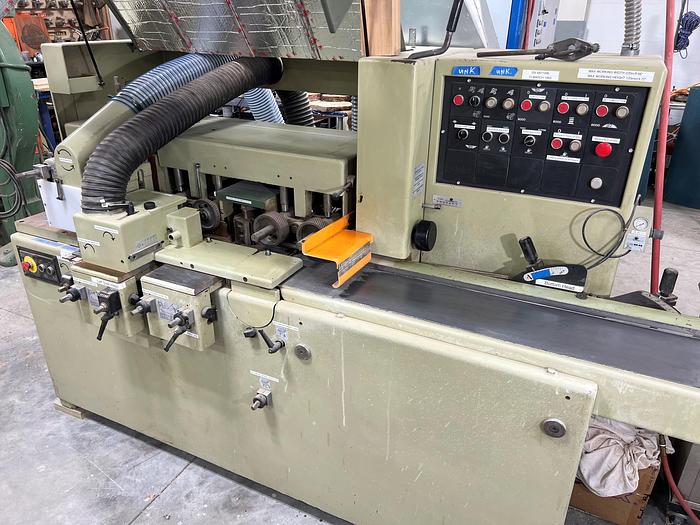

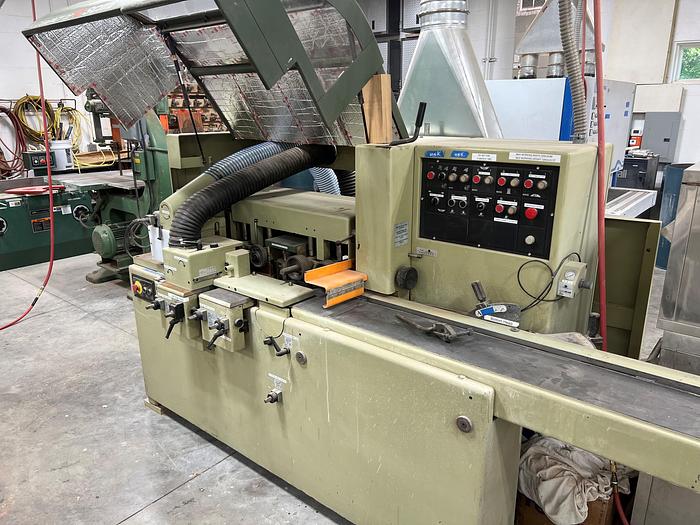

SCMI Compact 22 4 Head Moulder, 230V 3PH, 220mm x 120mm Moulding Capacity, 6-12 Meters Min.

SCMI Compact 22 4 Head Moulder, 230V 3PH, 220mm x 120mm Moulding Capacity, 6-12 Meters Min.

Specifications: Head Sequence Bottom 9 HP motor, right/left 12HP motor and Top 12 HP motor.

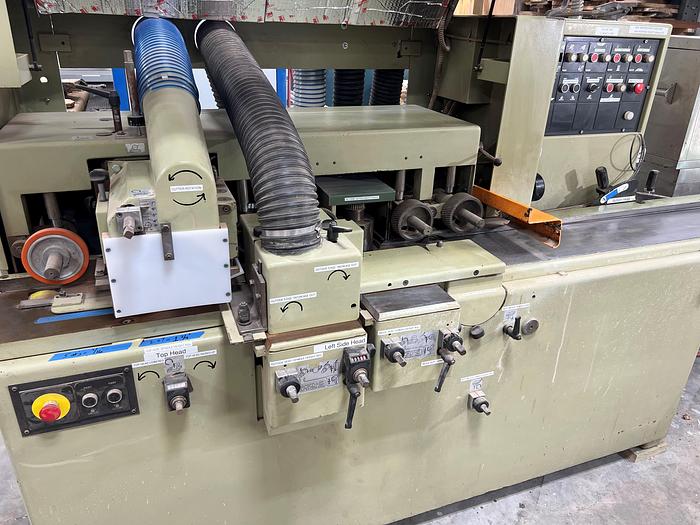

Four Head (Bottom, right, left, top / B-R-L-T ).

230V/60cy/3 phase

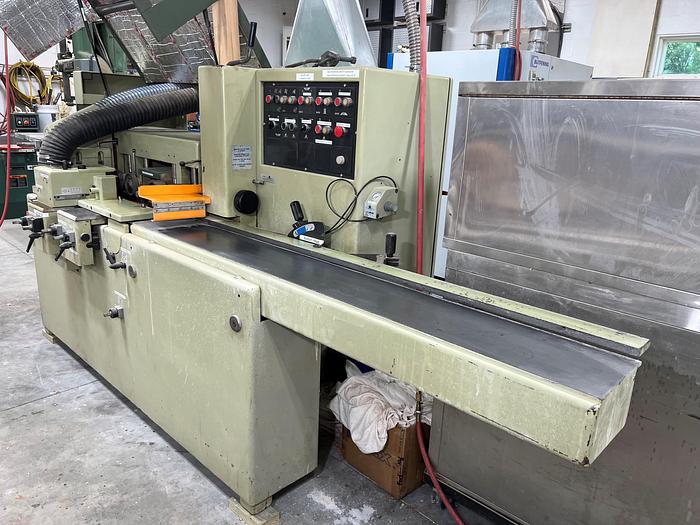

Working capacity maximum width is 220mm (8.66”).  Minimum working width is 25mm (.98”). Maximum working height is 120mm (120mm (4.72”). Minimum width is 6mm (.236”) The infeed table length 2000mm (78.7”). Feed speed is 6-12 m/min, Spindle speed is 6000rpm. Spindle diameter is 40mm. Current spindle diameter 40mm, Vertical spindle is 135mm,(5.31”), Horizontal spindle is 230mm (9.055”).

Back panel is not shown in the pictures but it is included.

Weight: 3300lbs

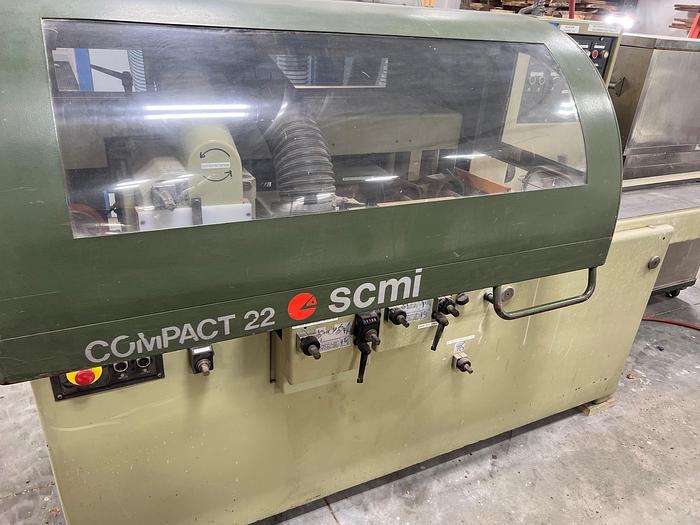

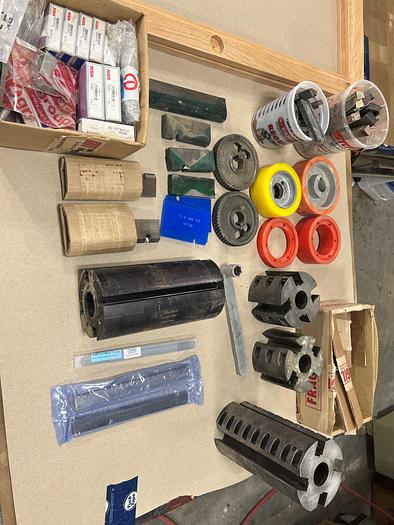

Machine is in very good condition. All spindles have had the bearings replaced in the last 6 months. All Spider couplings have been replaced. Sound insulation hood has been replaced and upgraded. Two of the three primary motors have been rewind/rebuilt within the last two years. All feed Wheels have been re-machined or replaced. All urethane feed rollers have been replaced. Manuals, hand cranks and special tools included. Spare parts included.
