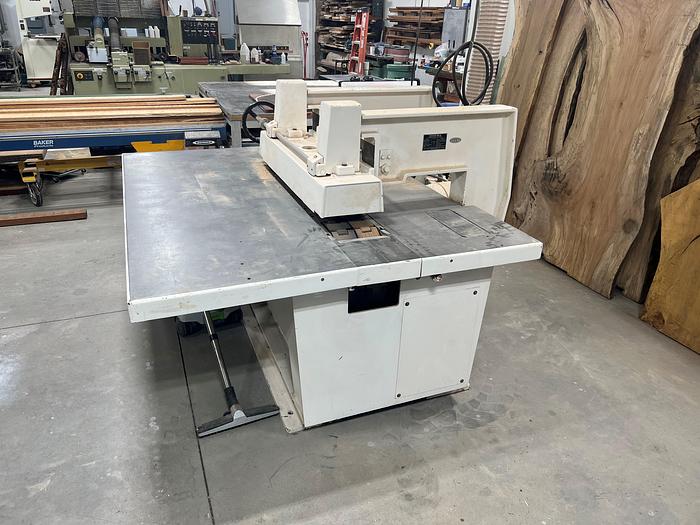

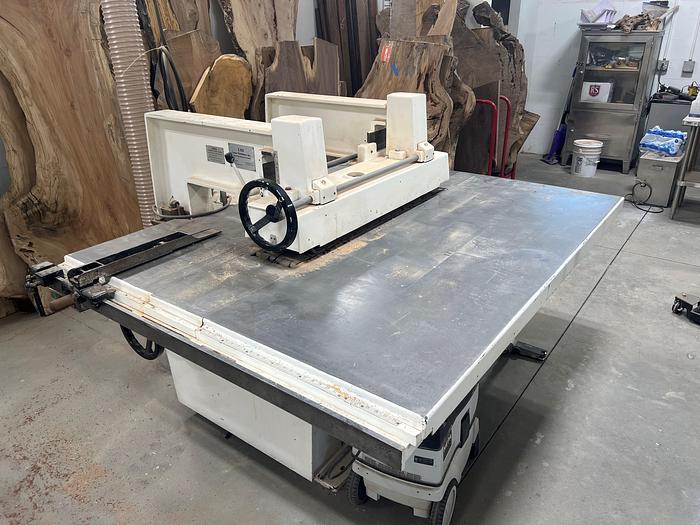

Diehl 18" Straight Line Rip Saw, SL-52, 15HP, 480V, 3PH, 4 1/4" Thickness Capacity, Only 1,000 Hours after Reconditioning

Diehl 18" Straight Line Rip Saw, SL-52, 15HP, 480V, 3PH, 4 1/4" Thickness Capacity, Only 1,000 Hours after Reconditioning

Specifications:

Saw is equipped with a 15HP main motor, automatic oiler, rip fence, and is presently wired 480v 3phase.

3600 rpm belt driven, fixed 2” arbor, 14-18” blade diameter. 4 ¼” maximum thickness, (18” blade). 2 Hp 1800 rpm feed drive, variable feed speed 65-190 fpm. Table size 78” x 64”. Adjustable rip fence, self -adjusting anti kick back fingers. Auto lubrication of feed and chain race.

Weight: 5000lbs
