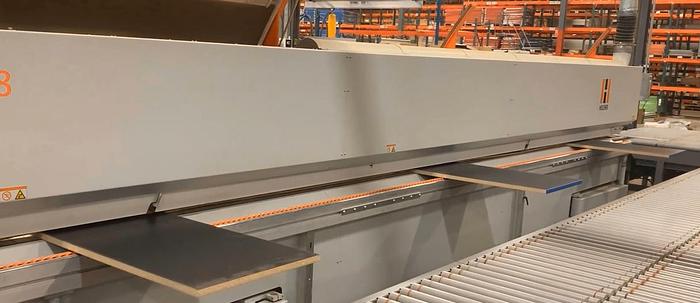

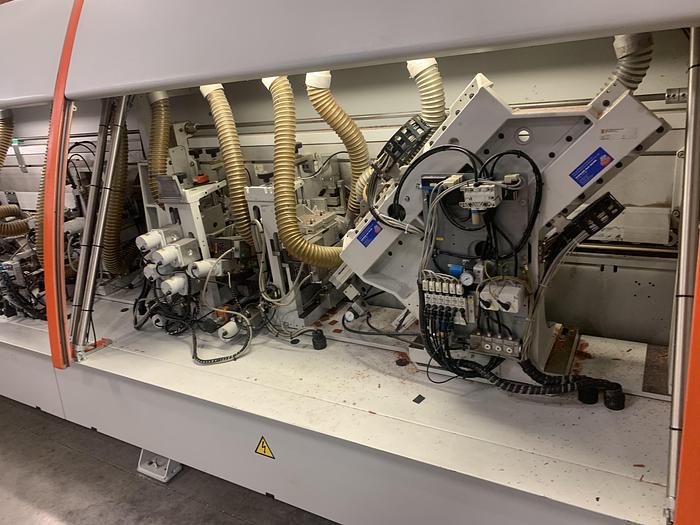

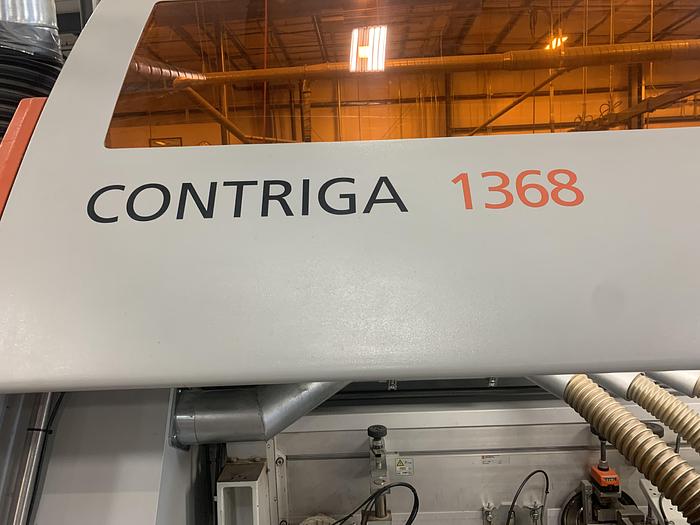

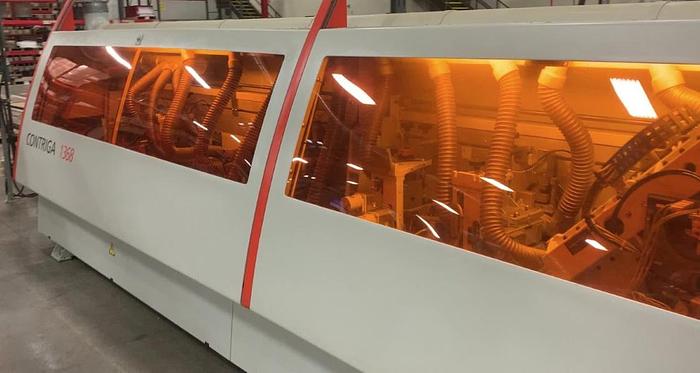

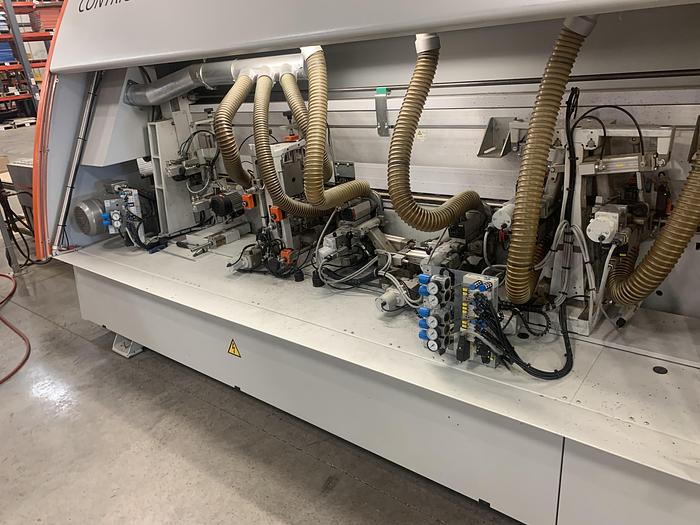

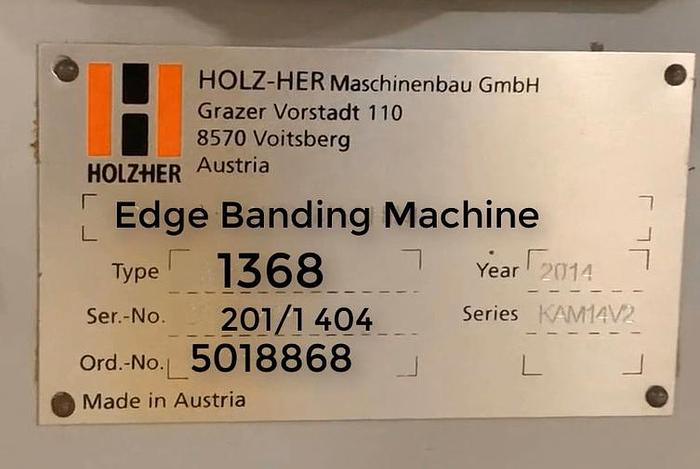

Holz Her Contriga 1368 Edgebander, 2014, 3MM PVC cap., PC Contoller, Low / No Set up with Programs

Holz Her Contriga 1368 Edgebander, 2014, 3MM PVC cap., PC Contoller, Low / No Set up with Programs

Clean, one owner machine, price includes rigging onto a carrier.

HOLZ-HER "CONTRIGA Series" Edgebander with PC Controller; has the ability to program all functions including: panel thickness, edge feed, glue application, end trimming, radius/fine trimming, corner rounding, scraping and buffing. Virtually eliminates set-up time by selecting & loading program that automatically activates these functions simultaneously.

All specifications below are believed to be correct, but may need further specification.

3 mm PVC cap., 2-3/8" max. panel thickness and 7" min. panel length; powered pressure beam opening adjustments.

"1961" Pre-Milling station, PC controlled w/45 mm (1-3/4") milling height, 2-motors @ 2 kW (2.6 HP) - 9,000 RPM each.

Granulate glue system with hopper system with "floating" applicator nozzle & "quick melt" feature.

"1914" Pressure section with (3) large dia. rollers, each w/individual pressure control, powered 1st roller with electronic speed control synchronized with chain feed speed.

"1916" Double motor (1 HP - 6,000 RPM motor ea.) end trim units with "Uni-Point" swivel system, "quick change" from flush to 0° - 15° bevel from operator panel.

"1962" Top & bottom flush trim unit (2.6 HP - 200 Cy HF motors), 12,000 RPM cutter speed; SIKO digital readouts; non tilt.

"1966" Top & bottom fine trim unit w/motorized positioning, (1.5 HP - 200 Cy HF motors), 12,000 RPM cutter head speed, bevels 0° - 45°, SIKO digital readouts; all adjustments promgrammable through the PLC.

"1934" 2-Motor Corner rounding unit for top & bottom of leading & trailing corner when edgebanding all four sides (0.7 HP - 200 Cy ea.), both motors with with SIKO digital readouts as well as SERVO positioning from control panel; SERVO adjustment of entire unit (base).

"1927" Scraper Unit for finishing up to 5 mm thick PVC banding for radius range from 2 - 5 mm, vertical & horizontal tracing wheels, SERVO positioning enabled through "PC"; SERVO controlled in/out of base.

"1851" Jump buffing unit for cleaning & polishing of panel (two 0.25 HP - 1,440 RPM motors), tilts 0° - 45° vertically and 0 - 20° swivel on horizontal plane.

Variable feed speed up to 30 MPM (98 FPM); panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication.
