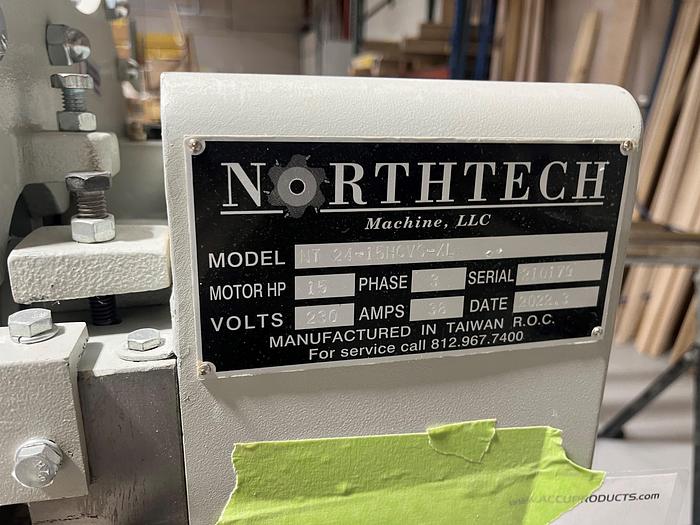

Northtech 24" Helical Head Planer, 15HP 230V, 3PH, Model 24-15HCVSXL, 7.8" Thickness Capacity

Northtech 24" Helical Head Planer, 15HP 230V, 3PH, Model 24-15HCVSXL, 7.8" Thickness Capacity

Cutter Heads:

•  Cutterhead motor:  15HP, 3PH 230V

Product Dimensions:

•  Stocking thickness range:  3/16″ – 7.874″
•  Max depth of cut:  5mm (3/16″)
•  Max. width of stock:  610mm (24″)
•  Cutterhead diameter:  80mm (3-1/4″)

Feed System:

•  Power table motor: 1HP
•  Feed drive motor:  1HP

Features:

•  24″ Helical Head with (6) rows of 15 x 15 x 2.5mm 4-way carbide inserts.
•  The spiral cutter head provides a high chip removal rate and superior surface finish at low noise levels.
•  Range of feed speed:  0-75 ft./min. variable inverter.
•  Quick-adjust bed rollers
•  Powered table elevation for fast and convenient thickness setting via digital control.
•  Extra-heavy rib-reinforced cast iron table with a precision ground surface.
•  Corrugated sectional infeed roller has independent sections for running strip stock of varying thicknesses.
•  Table area:  25″ x 27-1/4″ (635 x 692mm)
•  Net weight 1,525 lbs.  Gross weight 1,630 lbs.

Specifications:

• Top Head Hp. = 15 Hp.
• Voltage/ Freq. = 230 Volt 60Hz
• Phase = 3 Phase
• Amp Requirement = 39/19.5 Amps
• Feed Hp. = 1 Hp.
• Feed System = Segmented Roller / Power Rolle
• Drive System = Belt
• Feed Speed = 5 – 70 FPM
• Variable Speed = Inverter Controlled
• Elevation Hp. = 1 Hp.
• Elevation Style = REC 727M Elevation Control
• Elevation Sys. = (2) Post Jack Screw
• Total Hp. = 17 Hp.
• Electronics = CE Approved Components
• Dual Voltage = 230/460 Volt
• Control Voltage = 110 Volt
• Programmable = REC 727M Elevation Control
• Min. Length = 10”
• Max. Width = 24”
• Min. Thickness = 3/16″
• Max. Thickness = 7-3/4”
• Cutter Head RPM = 5250 Rpm
• Tooling = 15 x 15 x 2.5 mm
• Head Type = Dynamically Balanced Helical Head
• Cutter Head Dim = 3-3/4” x 24”
• Cut Head Matl. = Alloy Steel
• Rows of Cutters = 6 Rows
• No. of Inserts = 144 Inserts
• Insert Size = 15 x 15 x 2.5 mm
• Dust Collection = 981 CFM @ Extraction Point
• Dust Port Out = 6” Top
• Digital Display = Elevation and Feed Speed
• Powered Rollers = 2 Top Powered Rollers
• Idle Rollers = (2) Idle Bed Rollers
• Pressure Shoes = 24” Spring Loaded Pressure
• Frame Const. = 1/4” Steel/Cast Iron Construc
• Infeed Table = 15-1/2” 3 Roll Infeed Table
• Decible Rating = 77 dB
• Net Weight = 1525 Lbs.
• Gross Weight = 1630 Lbs.
• Machine Dims. = 43” x 45” x 55”
• Packaging Dims = 36” x 49” x 54”
