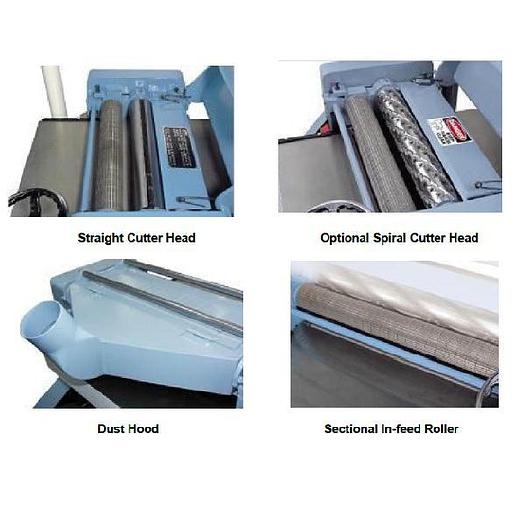

Castaly WP-2400S 24" Heavy Duty Planer with Spiral Cutter Head
Castaly WP-2400S 24" Heavy Duty Planer with Spiral Cutter Head
$9,590 (USD)
Description
Heavy cast iron one-piece frame and base.
Easy and accurate assembly of the knives.
High quality for long period of use.
Top rollers for returning stock.
Table raises and lowers easily.
Gear driven feed rollers for trouble free feeding.
Sealed long-life ball bearings.
Precision three knives cutterhead.
Heavy-duty precision ground cast iron stable.
Fast 30 FPM for mass production performance.
3 belts drive for full power transfer.
Industrial motor for durability usage.
Anti-kickback fingers for safety protection.
SPECIFICATIONS WP-2400
Table Area 24.8" x 28"
Max. Planing Width 24"
Max. Planing Thickness 7"
Min. Planing Thickness ½"
Cutter Head Speed 5500 RPM
Cutter Head Dia. 3-1/8"
Knife Dimensions (T x W x L) 1/8" x 1-1/8" x 24"
Feeding Speed 30 FPM
Max. Cutting Depth ¼"
Min. Planing Length 10"
Motor 5 HP, 3 PH, 230 V
N.W. 1050 LBS
G.W. 1250 LBS
Specifications
| Manufacturer | Castaly |
| Model | WP-2400S |
| Condition | New |
| Stock Number | WP-2400S |
