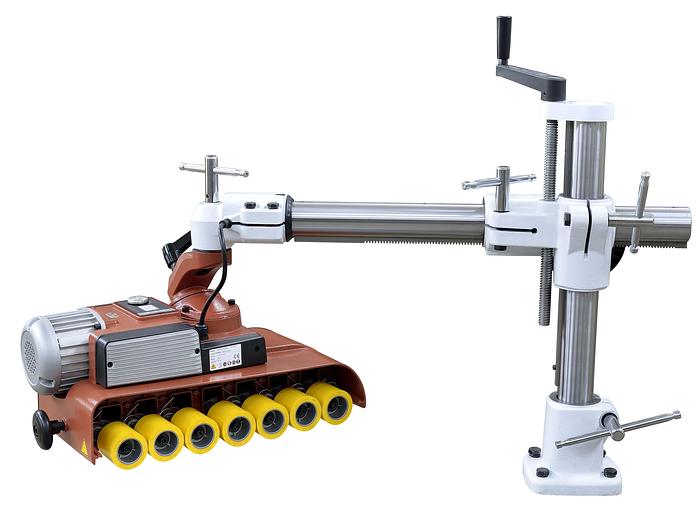

Co-Matic DC70 7 Wheel Variable Speed Power Feeder - Short Stock DC70, Digital Controls, DC Power Saving Motor

Co-Matic DC70 7 Wheel Variable Speed Power Feeder - Short Stock DC70, Digital Controls, DC Power Saving Motor

The #1 Shaper Feeder in the market. For woodworkers looking for the capability of feeding smaller parts that tend to wobble or chatter with standard 3 and 4 wheel feeders, the DC70 is the perfect fit. The patented DC70 7 Wheel Variable Speed Power Feeder is commonly used for cabinet door parts on a shaper, lock miters, and other applications where more hold down is preferred. It is also a good option when climb-cutting by preventing the part from taking off due to its 7 hold-down points. Although it is ideal for feeding shorter parts, it is a heavy duty feeder capable of feeding larger parts as well so you don't lose versatility. It is also great for table saws and other applications where shorter parts are being fed.

Why are shops choosing the DC70 over other feeders?

1. Capable of Feeding Short-Stock

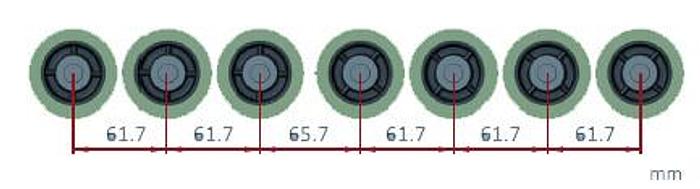

Feed shorter parts while maintaining secure hold-down due to the shorter distance between the polyurethane rollers from center to center

2. Instant 90° Memo-Locking Swivel Adjustment

Swivel the power feeder and lock it in instantly - perpendicular or parallel to the fence with the memo-locking feature not found on standard stock feeders.

3. Variable Speed & Digital Controls

No more gear change-out. Easily identify your feed rate and change the speed with the turn of a button at 1 fpm increments until you reach your desired speed from 7-86 fpm

4. DC Brushless Servo Motor

Save over 75% in energy costs while producing similar torque as 1 horsepower AC motor feeders, especially at lower speeds

5. Upgrade to SS130 Smart Stand

For more durability and increased flexibility, you can upgrade from the SG13 (US13) Heavy-Duty Feeder Stand to the SS130 Smart Stand which makes it model DS700 Smart Power Feeder.

Type 7 Wheel Variable Speed

Horse Power & Rotation (2/3HP) 1-3 Phase, 110-220V; Forward/Reverse

Range of Speeds 7 - 86 FPM

Roller Size ∅60 x 60 mm (∅2.36″ x 2.36″)

Roller Suspension 18 mm (3/4″)

Warranty Period 2 years

Base Bolt Pattern 108 x 90mm Center to Center
