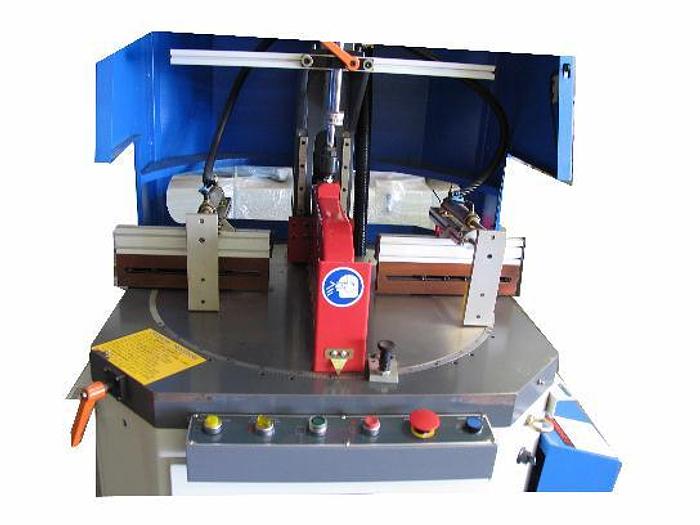

Castaly CS- 20RL45 45 to 90 Degrees Adjustable 20" Cut-Off Saw

Adjustable maximum 45 degree to the right or left or 90 degree angle setting for semi-automatic, fast cutting.

Semi-automatic by pneumatic movement cutting.

Auto. cutting cycle simply operated by foot switch.

Sealed long-life ball bearings.

Full 10 HP motor for powerful cutting capacity.

Precision ground cast iron table with heavy metal cabinet stand.

Easy operation for furniture, lumber, door, pallet or other manufacturing.

Clamp and guard automatically holds the lumber within cutting period and releases it after cutting.

Saw blade rises from under the table and return right after cutting for safety operation.

Magnetic control with overload protection.

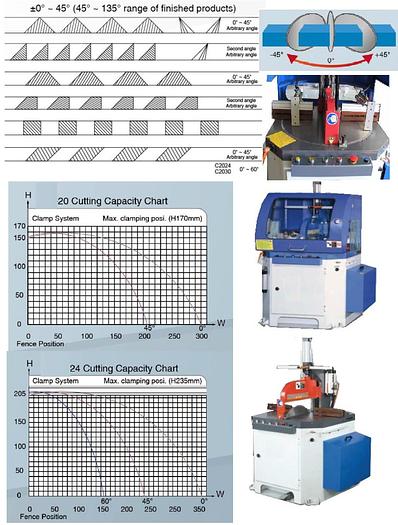

SPECIFICATIONS CS-20RL45

Cutting Capacity (H x W) 3/4" x 11"

90 Degree 2-1/8" x 6"

45 Degree 1-1/2" x 12-1/2"

45 Degree 1/2" x 13-1/2"

Designed Cutting 25 Cycles/Min

Saw Blade Diameter 20"

Saw Blade Arbor 1"

Saw Blade Speed 3600 RPM

Air Pressure 90 PSI

Dust Hood 4"

Motor (220/440V) 10HP 3PH

Overall Dimension (W x L) 47" x 40"

N.W. 910

G.W. 1200
