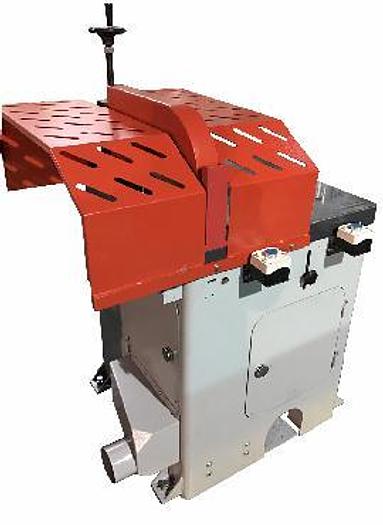

Castaly CS-18L 18" 10 HP Pneumatic Cut-Off Saw

Semi-automatic, fast cutting.

Auto. cutting cycle simply operated by foot switch.

Sealed long-life ball bearings.

Full 10 HP motor for powerful cutting capacity.

Precision ground cast iron table with heavy metal cabinet stands.

Easy operation for furniture, lumber, door, pallet or other manufacturing.

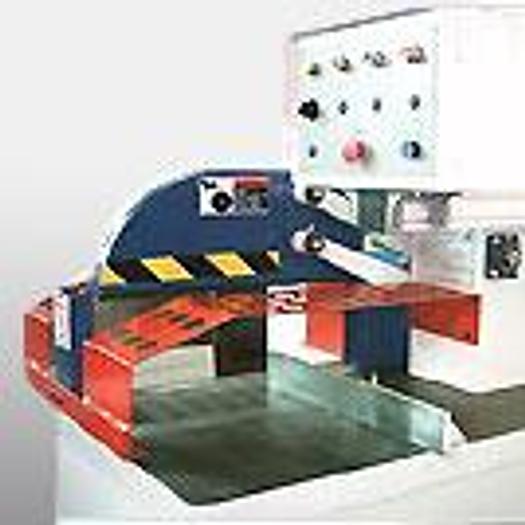

Clamp and guard automatically hold the lumber within cutting period and release it after cutting.

Saw blade rises from under the table and returns right after cutting for safety operation.

Magnetic control with overload protection.

SPECIFICATIONS CS-18L

Cutting Capacity    4-1/4" x 10"

2-1/4" x 12-1/4"

1-1/2" x 12-1/2"

1/2" x 13-1/2"

Designed Cutting (Cycles/Min) 45

Saw Blade Diameter 18"

Saw Arbor 1"

Saw Blade Speed (RPM) 3200

Air Pressure 90 PSI

Dust Hood  4"

Motor 10 HP 3 PH 230V

N.W. 730 LBS

G.W. 800 LBS
