Castaly CM-600CNC-6S CNC Dovetail Machine (6 Styles Dovetails)

Castaly CM-600CNC-6S CNC Dovetail Machine (6 Styles Dovetails)

$24,990 (USD)

orCall 920-452-4494

Description

Syntec CNC Control Dovetail Machine is designed into six types .dovetails.


   Pre-Load Dovetail's Type Program


English dovetail joints with all the same fixed length’s dovetail and pitch. (Dovetail length/pitch 25 to 100 mm)


French blind dovetails. (Dovetail length 0 to 600 mm)


Threading Dovetail Joints rectangular instead of round fingers. (Dovetail length 14.5 to 100 mm, Pitch 14.5 to 100 mm)


Alter English One dovetail joints with all the same length’s dovetail by different/variable pitch (Dovetail length 13.5 to 100 mm, pitch 13.5 to 120 mm)


Alter English Two dovetail joints with different length’s dovetail and different pitch (Dovetail length 13.5 to 100 mm, pitch 13.5 to 120 mm)


Parallel indent straight cut (beehive type) fingers joints.


Pre-load auto program movements for complete cutting cycle.

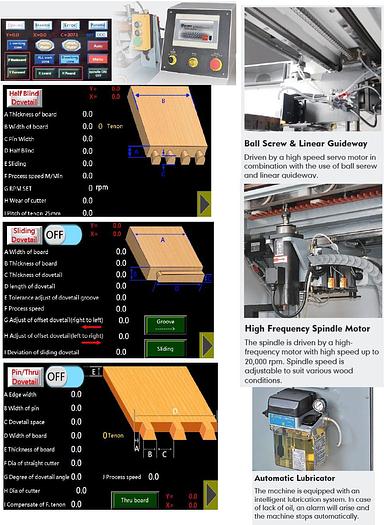

Operators can choose the models according to demands, able to change or design wood materials variously, set the working speed, sizes of tenons & mortises, intervals by simple human operation interface. The files can be saved for repeat use. Heavy steel frame and cast iron table for long-life usage.


Four large air clamps for making two sets of male and female dovetails at the same time.


Servo router head travels at precision linear bearing providing smoothness and accuracy.


Male and female dovetails are produced at the same time for maximum match accuracy.


Variable cutting speeds for best finish of different materials.


Easy operation and maintenance.


Nonstop Working Design: After operators input programs, Controller will separate the working tables into left & right areas. When one area is working, operators can change the materials at the other area. In this motion, machine doesn't need to stop & increases work efficiency.


Main Motor: High Frequency. Durable & stable. The rotation speed is up to 20,000 RPM.


Processor: Quality PLC made by Japan Mitsubishi. All electric equipment conforms to CE standards.


Debug System: The computer stops automatically under perfect protection upon wrong operation or setting for fear of over stroke. Detailed error messages will be shown for operators to understand & debug.


Circuit Design: The machine stops automatically under power failure or insufficient air pressure for fear of danger led by clamping cylinder.



Working Width 1" ~ 23.6"

Working Thickness 3/8" ~ 1"

Main Spindle Motor 2 HP

Max. Spindle Cutting Speed 20,000 RPM

X, Y Axis Servo Motor 1000 kw x 2

CNC Controller Mitsubishi PLC

Dust Hood 4" x 3

Machine Size (L x W X H) 59" x 33" x 51"

N.W. 1450 LBS

Specifications

ManufacturerCastaly
ModelCM-600CNC-6S
ConditionNew
Stock NumberCM-600CNC-6S
