Castaly BR-01DH-21D

Castaly BR-01DH-21D

$3,680 (USD)

orCall 920-452-4494

Description

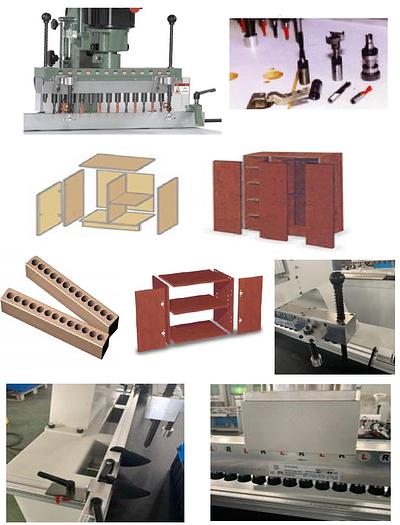

21 spindles line drill head Included

Optional quick exchangeable Hinge Boring & 32mm Drills Head for Dual Function at same machine with Hinge and 13/21 Drills 32 mm Line Boring

Fully adjustable fence system with easy-to-read scales in both inches and metric for quick setup and accurate boring.

Manually quick clamp devices.

Heavy-duty cast iron construction machined with precision.

Indexing pins to remain correct spindle alignment for resuming line boring operations in long work piece.

Work stops on either end of the fence allow operator to line up work from the left to right for performing parallel boring patterns.

Adjustable depth stop control even in the toughest work piece.

Minimal maintenance required.

Open base steel stand included.

Sturdy density veneered plywood tabletop.



SPECIFICATIONS BR-01DH-13D/21D

Motor 2 HP, 1PH

Drill Speed 3400 RPM

Spindle Accepts Shank M 10

Spindle Stroke (Max) 2"

Table Size (W x L) 23" x 48"

Chuck ~

Throat Depth 9-1/2"

Multi Drill Head Available 32mm CENTER

Standard Spindles 13 / 21

N.W. 242 LBS

G.W. 390 LBS


Specifications

ManufacturerCastaly
ModelBR-01DH-21D
ConditionNew
Stock NumberBR-01DH-21D
