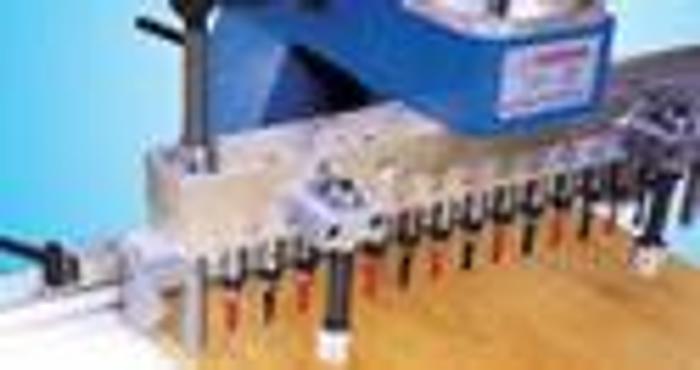

Castaly BR-21VPA b. 21 Drills Vertical Boring - Pneumatic

Pneumatic operates to drill 21 holes at one time producing mass drilling capability.

Precision large travel piston to ensure accurate drilling position.

Heavy duty cast iron frame for durability for long periods of use.

Suitable and affordable for industrial and small workshop use.

The machine is ruggedly constructed throughout and convenient operation and facilitated by the use of a foot switch control.

Pneumatic drill head travel for fast and easy operate.

Standard comes with optional stand, operated by foot pedal, hands free.

SPECIFICATIONS BR-21VME (VPA)

Motor 2 HP, 1PH

Drill Speed 3400 RPM

Spindle Accepts Shank M 10

Spindle Stroke (Max) 2"

Table Size (W x L) 23" x 48"

Chuck ~

Throat Depth 9-1/2"

Multi Drill Head Available 32mm CENTER

Standard Spindle 21

Max. Spindle ~

N.W. 242 LBS

G.W. 390 LBS
