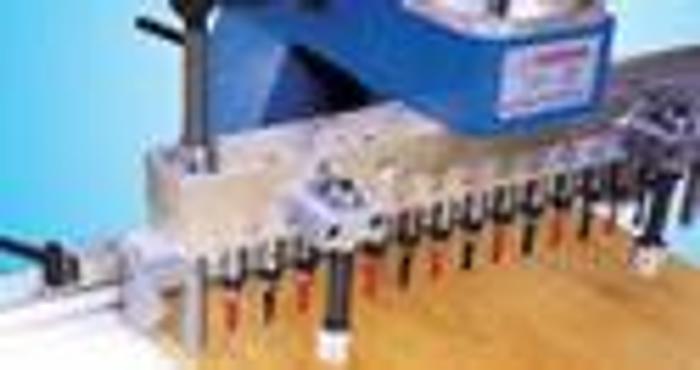

Castaly BR-21VME b. 21 Drills Vertical Boring - Manual

Manually operates to drill 21 holes at one time producing mass drilling capability.

Precision large travel piston to ensure accurate drilling position.

Heavy duty cast iron frame for durability for long periods of use.

Suitable and affordable for industrial and small workshop use.

SPECIFICATIONS BR-21VME (VPA)

Motor 2 HP, 1PH

Drill Speed 3400 RPM

Spindle Accepts Shank M 10

Spindle Stroke (Max) 2"

Table Size (W x L) 23" x 48"

Chuck ~

Throat Depth 9-1/2"

Multi Drill Head Available 32mm CENTER

Standard Spindle 21

Max. Spindle ~

N.W. 242 LBS

G.W. 390 LBS
