Castaly BR-01DH-13D b. 13 Drills Vertical Boring - Manual (BR-01DH plus 13 Drills Head)
![Castaly BR-01DH-13D b. 13 Drills Vertical Boring - Manual (BR-01DH plus 13 Drills Head)](https://i.machineryhost.com/53fde96fcc4b4ce72d7739202324cd49/65e619895d82fd182177838e1dc3163d/large-castaly-br-01-dh-13-d-b-13-drills-vertical-boring-manual-br-01-dh-plus-13-drills-head.jpg)
Castaly BR-01DH-13D b. 13 Drills Vertical Boring - Manual (BR-01DH plus 13 Drills Head)
$3,080 (USD)
Description

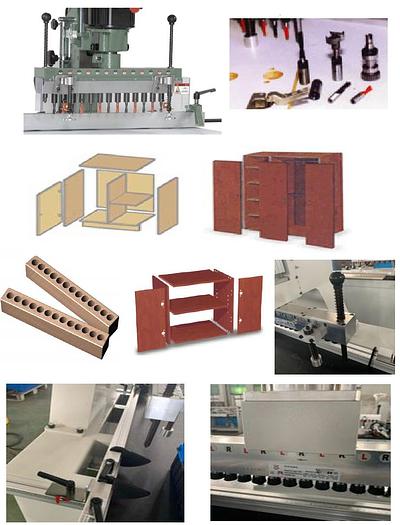

13 Spindles Line Drill head include
Optional quick exchangeable Hinge Boring or 32mm Drills Head for Dual Function at same machine with Hinge and 13/21 Drills 32 mm Line Boring
Fully adjustable fence system with easy-to-read scales in both inches and metric for quick setup and accurate boring.
Manually quick clamp devices.
Heavy-duty cast iron construction machined with precision.
Indexing pins to remain correct spindle alignment for resuming line boring operations in long work piece.
Work stops on either end of the fence allow operator to line up work from the left to right for performing parallel boring patterns.
Adjustable depth stop control even in the toughest work piece.
Minimal maintenance required.
Open base steel stand included.
Sturdy density veneered plywood tabletop.
SPECIFICATIONS BR-01DH-13D
Motor 2 HP, 1PH
Drill Speed 3400 RPM
Spindle Accepts Shank M 10
Spindle Stroke (Max) 2"
Table Size (W x L) 23" x 48"
Chuck ~
Throat Depth 9-1/2"
Multi Drill Head Available 32mm CENTER
Standard Spindles 13 / 21
N.W. 242 LBS
G.W. 390 LBS
Specifications
Manufacturer | Castaly |
Model | BR-01DH-13D |
Condition | New |
Stock Number | BR-01DH-13D |
