Castaly BR-56 b. 72" Horizontal One Side Multiple Boring M/C

Suitable and affordable for industrial and small workshop use.

Capable of using "multiple drill head" for the drill distance less than 2".

Easily adjust the drill position and add more drill spindles.

Pneumatic clamp and drill head travel operated by foot pedal, hands free.

Pneumatic and hydraulically stroke control for max. drilling power.

Each spindle can be horizontally adjusted in position quickly.

Cast iron base and table for durable usage.

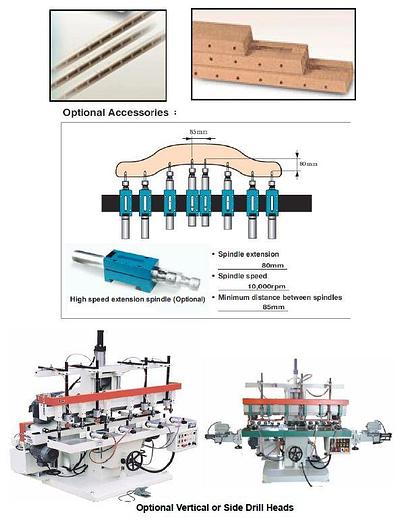

OPTIONAL Multiple Drill Head.

SPECIFICATIONS BR-56

Motor (3 PH) 3HP x 2

(PREWIRE) 110/230V

Drill Speed (RPM) 3400

Drill Chuck 1/2"

Spindle Stroke (Max.) 4"

Table Size(W x L) 18" x 72"

Max. Working Length 72"

Multiple Drill Head Available Yes

Air Clamp 6

Standard Drill Spindle 6

Max. Drill Spindle 8

Max. Drill Distance (Chuck Type) 2"

N.W. 3180 LBS

G.W. 3420 LBS
