Castaly AC-TS30 Screw Typre Air Compressor 30HP

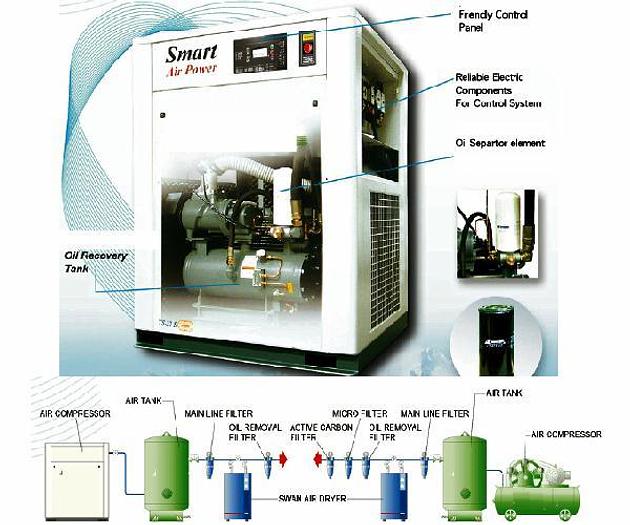

High Levels of Distinctive Modular Design

-With distinctive modular design and friendly operating system, the newly developed TS series is able to provide reliable operation, quiet running, and easy maintenance.  The adoption of a high-effciency Airend is dependable in highly powerful performance.

Versatile and User Friendly Control System

-The machine is equipped with versatile module control, friendly operation monitor, multi-units remote control and overload protection device, etc., which makes it easy to operate and maintain.

Powerful and quiet running Condition

-High Rigid Structure with anti-noise and high-efficient air circulation system is designed to ensure silent running and long-term operation capability.

Easy Maintenance

-Easy to access to all related components, makes trouble-shooting and general maintenance easy and inexpensive.

Specification AC-TS30

Max. Air Pressure kg/cm2 8.5

Air Volume FAD   M3/Min 3.4

Motor 30 HP

Air Outlet 1"

Machine Size (L x W x H) 36" x 37" x 53"

Machine Weight 1320 LBS
