Cantek PS515 Programmable 10HP, 3 Phase Shaper with HSK Spindle for Rapid Tool Changes

CANTEK | PS515 PROGRAMMABLE SHAPER

Rapid Setting with Precise Results.

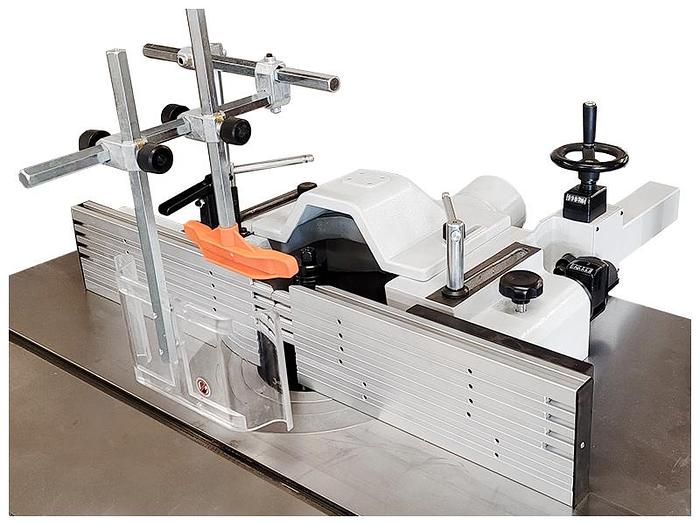

The Cantek PS515 programmable shaper is designed for those looking to change profiles and setups frequently throughout the day. It is equipped with a quick change HSK spindle which allows for rapid removal and replacement of the cutting tool. The programmable control allows for rapid setting of the spindle height as the operator can simply jog to the desired height or set and recall 99 programs with 9 individual settings in each program. In addition, it comes with a quick setting fence which uses mechanical digital readouts for rapid fence position setting.

Why a Cantek PS515 Programmable Shaper?

• Programmable motorized spindle height for precise setting and repeatable accuracy
• Capable of storing up to 891 spindle height settings or simply jog to the desired height setting

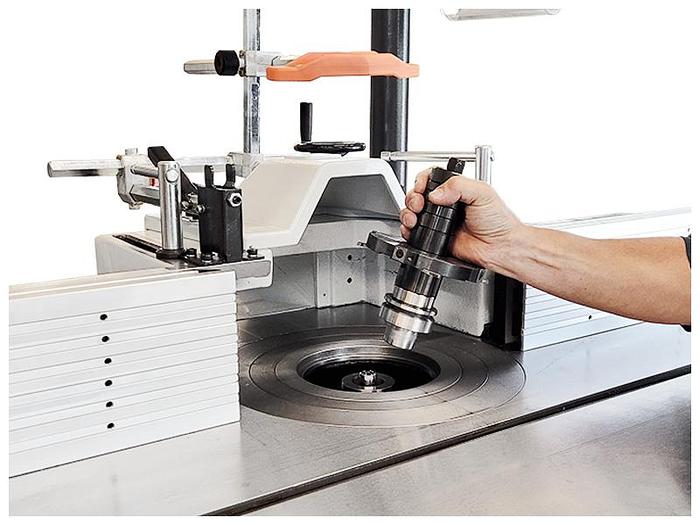

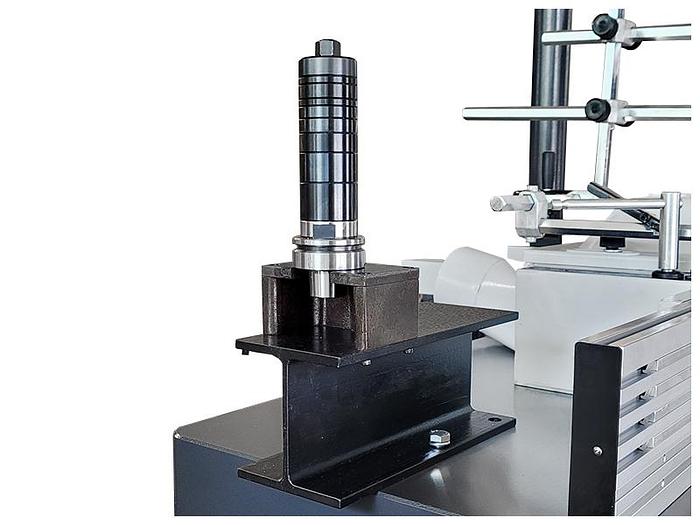

• Quick change HSK spindle assembly for rapid profile changeover
• Powerful 10HP spindle motor with five (5) spindle speeds
• Quick setting fence assembly with mechanical digital readouts for repeatable results.

Key Advantages:

• Heavy duty construction with large cast iron table which is ground and polished

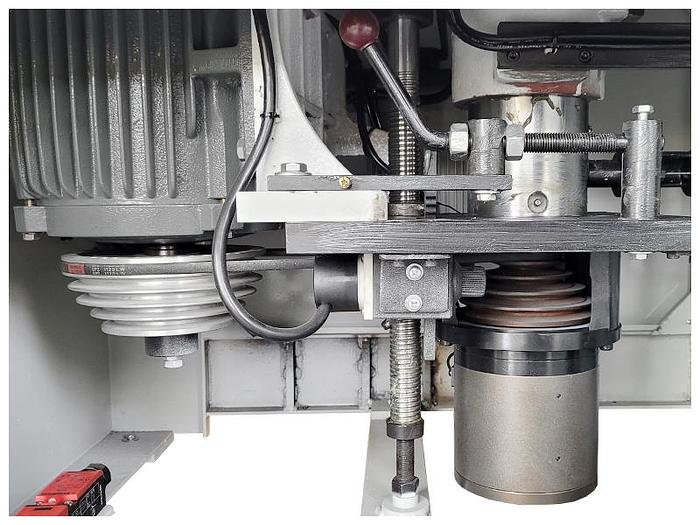

• Spindle speeds of 3000/4000/6000/8000/10000 RPM which are changed through a multi-step pulley

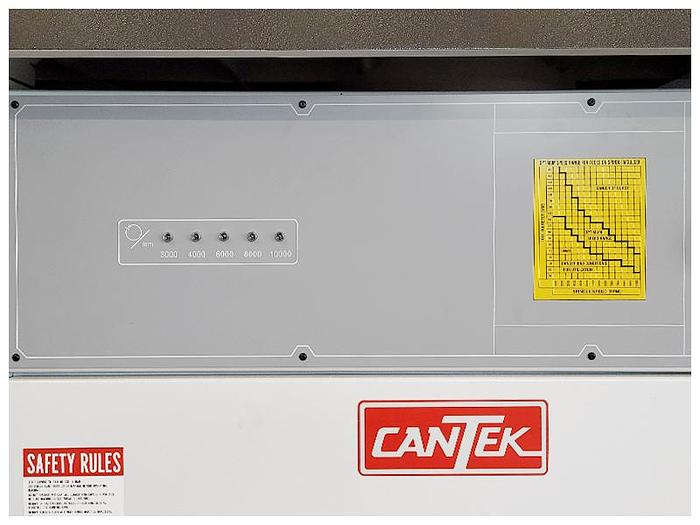

• Spindle speed is indicated by LED for safe operation
• Electronic spindle brake for safer operation and quick spindle changeovers
• Forward / reverse spindle direction

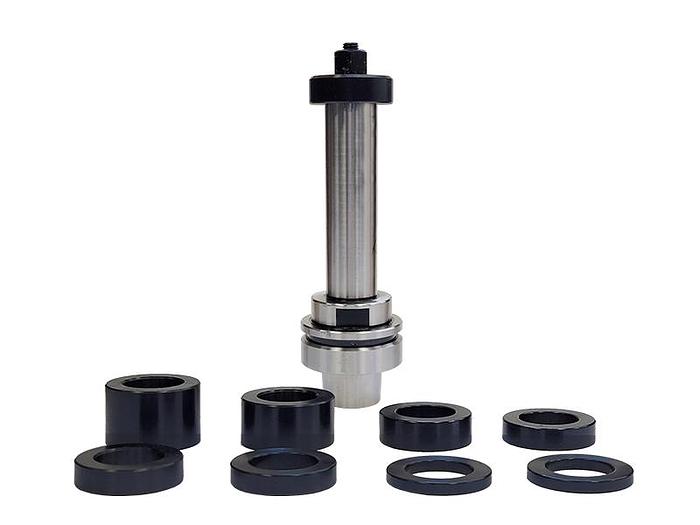

• Comes with (1) 1 ¼” spindle assembly (additional spindles with various spindle diameters are available upon request)

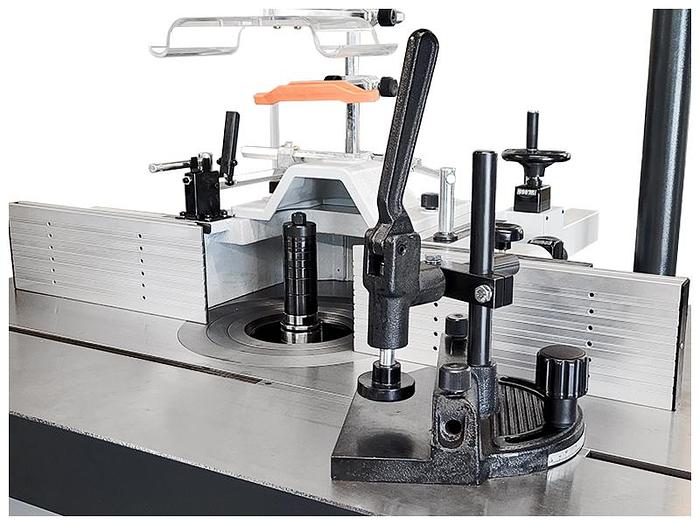

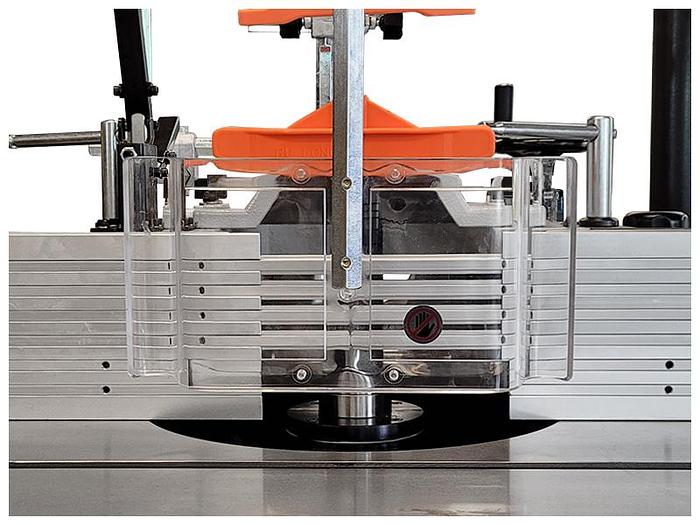

• Adjustable finger type fence system to adjust around the cutterhead for optimal part support
• Equipped with plug assembly for adding a CANTEK DC feeder and the table is pre-drilled to accept the feeder base
• Table rings: 2 ¾” | 4 ¼” | 6” | 8” | 10” (72mm | 109mm | 154mm | 204mm | 264mm)
• Comes with a miter gauge which runs in a guide on the table

Overhead Control Features:

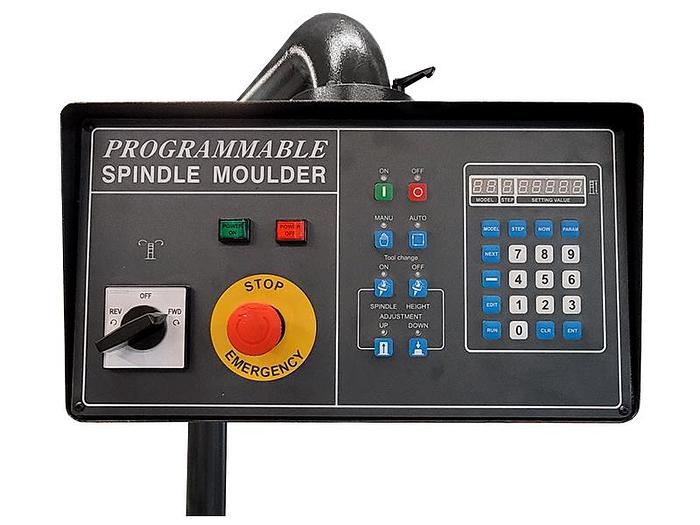

• Control panel is mounted on an overhead pedestal arm and is at eye level for operator convenience
• Programmable Setting: 99 programs with 9 settings in each program for a total of 891 spindle settings
• Manual Setting: Simply jog the spindle up and down with the height being displayed on the controller
• Forward / reverse spindle direction switch
• Button for releasing the spindle for changing the cutterhead
• Emergency stop button

Table size 51” x 33” (1300 x 850mm)

Vertical spindle stroke 10” (250mm)

Maximum tool diameter: Below table 12.6” (320mm)

Maximum tool diameter: Above table 14.17” (360mm)

Spindle speeds (5) 3000/4000/6000/8000/10000RPM – forward/reverse

Spindle taper HSK63F

Spindle diameter 1 ¼” HSK63F with 4.72” useable spindle length (120mm)

Motor with brake 10 HP, with electrical brake system

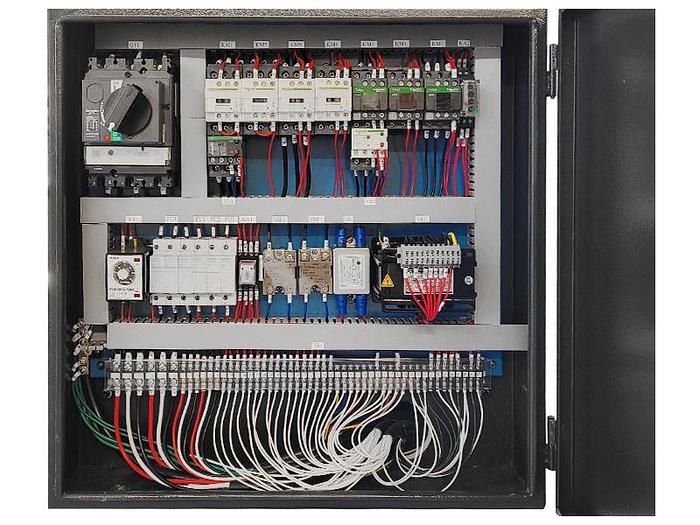

Electrics 230/3/60: 26 AMPS

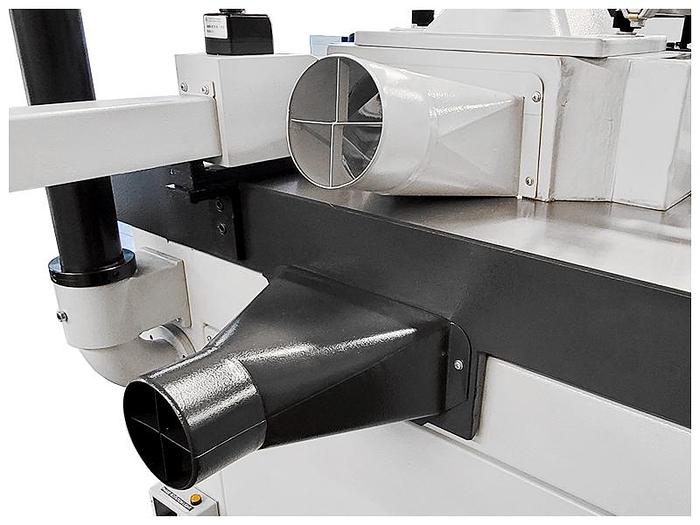

Dust ports Fence: 5” | Table: 4”

Net Weight 1276 lbs.

Shipping weight 1540 lbs.

Machine dimensions 59.5” x 33.5” x 72.5”

Shipping dimensions 64” x 39” x 74”
