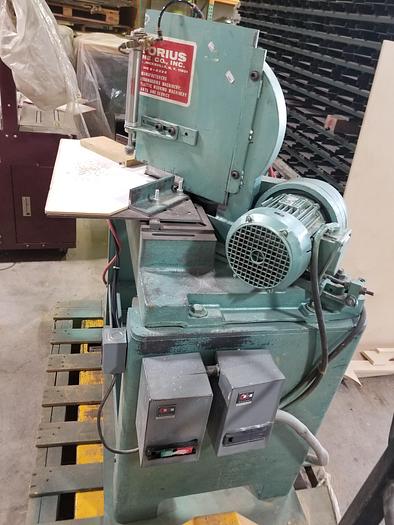

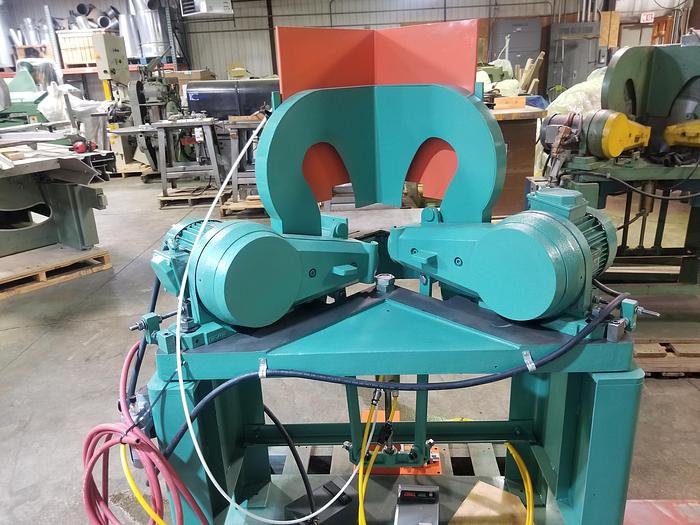

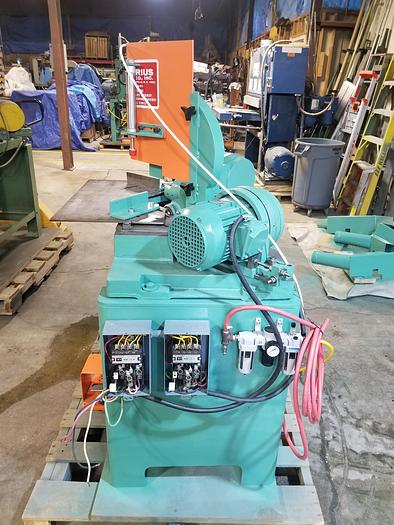

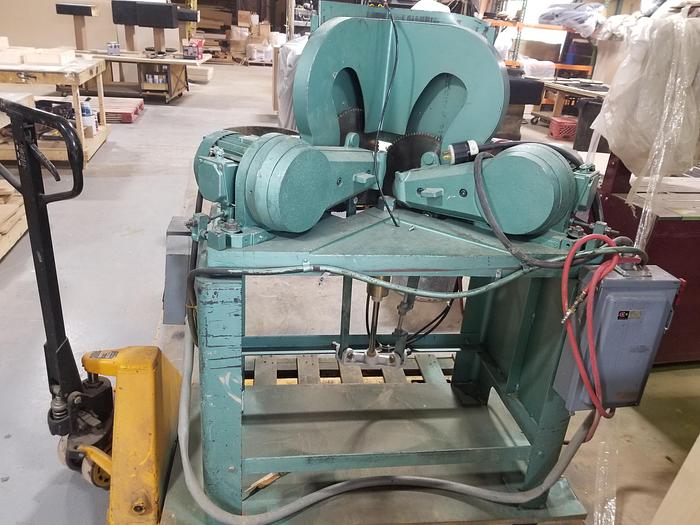

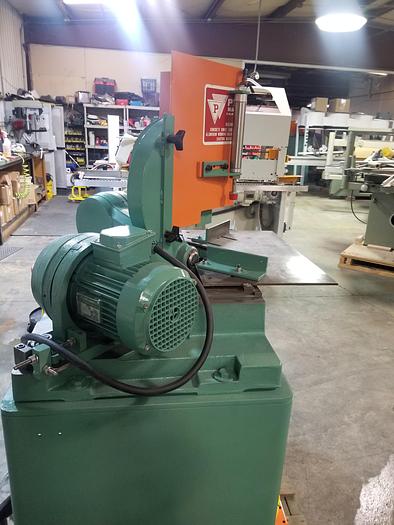

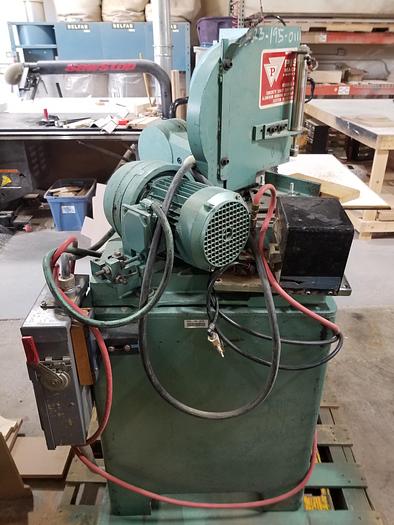

Pistorius Rebuilt MN-201, 12" Blade Cap. Toe Kick, Notching Saw, 3PH

Pistorius Rebuilt MN-201, 12" Blade Cap. Double Miter Saw, 3PH

Rebuilt machine

About 90% plus done.

Pistorius MN-201 Notching Saw, 12" blade Cap., Notching Table, 1.5HP, 3PH motors, Refurbished

Mechanically refurbished:

• Saw is disassembled and all mechanical and electrical parts are examined to see if replacement or repair is needed

• Saw body and all usable parts thoroughly cleaned and checked.

• Broken and worn parts replaced

• Bearings associated with spindle and motor replaced as needed

• Belts replaced as needed

• Safety equipment in place

• Test machine (with material may be extra cost)

• Install safety notice placards

4-1/4" x 4-1/4" Notching capacity

1-1/4" Stack height

(2) 1-1/2 HP saw motors

12" Diameter saw blade capacity

5/8" Diameter saw arbors

Staggered blades and fence set up for toe notching

(2) Pneumatic hold down clamps

Pneumatic foot pedal control

Magnetic starters

(2) 4" diameter dust outlets

Machine weight: 551 lbs

Price includes setting motors and starter boxes to required 3Ph voltage

Includes heavy notching table and angle iron fences, part clamping, tested, set up for notching.

Spindle nuts, spindle nut wrench, taper pin to lock spindles in place included

New blades can be quoted, included.
