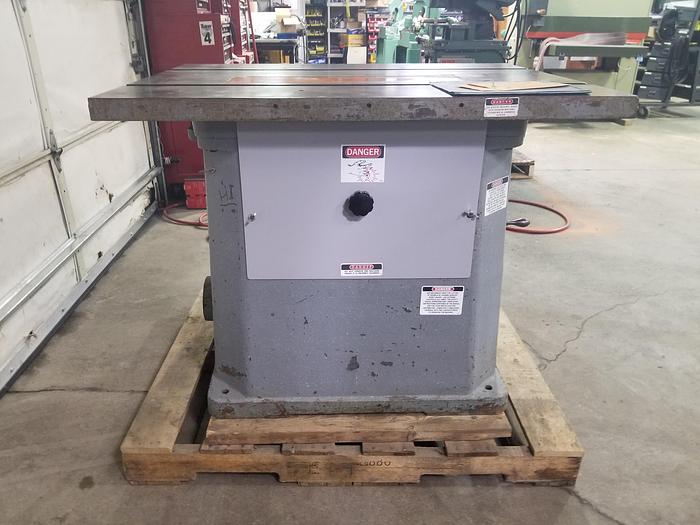

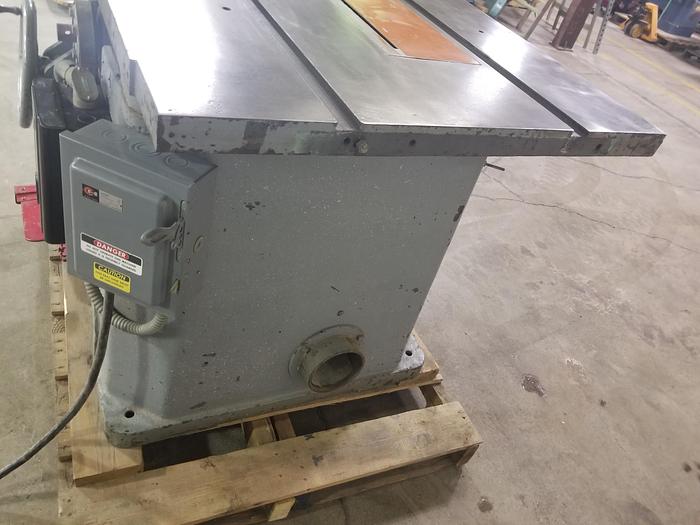

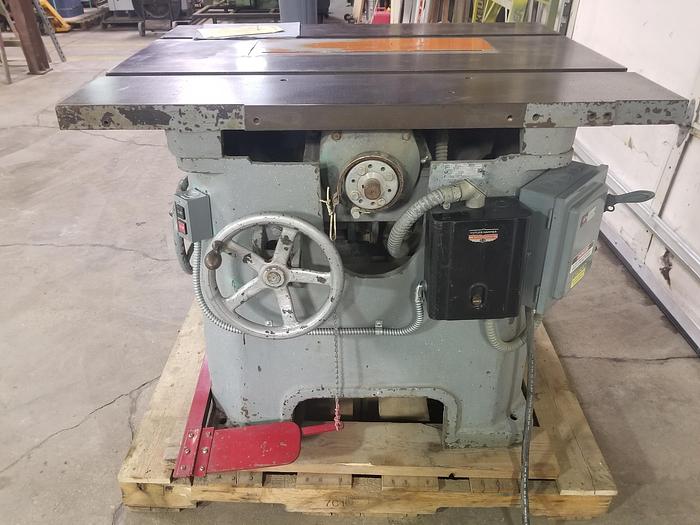

Northfield #4 Heavy Duty Industrial Table Saw

Cleaned and checked

5HP

220V

3Ph

Saw Capacity: 14", 16", 18"

14" Saw Projects: 3"

14" Saw Projects of 45 degree Tilt#:  2-1/4"

16" Saw Projects: 4"

16" Saw Projects of 45 degree Tilt#: 3"

18" Saw Projects             5"

18" Saw Projects of 45 degree Tilt#         3-5/8"

Saw Arbor Tilts 0 degrees to 45 degrees

Vertical Saw Adjustment : 4"

Arbor Speed (RPM) 3600

Motor HP Std. (TEFC) 5

Standard Arbor Diameter: 1-1/8"

Stationary Table Size: 36" x 44"

Rip Capacity with Standard Rack & Pinion Type Fence: 32" – Northfield Fence is not present

Crosscut Capacity: 32"

Height of Table Above Floor: 34"

Floor Space: 44" x 56"

Net Weight: 1680

Domestic Shipping Wt:1800lbs.

Cubic Measure 67 cu. ft.

No fence or guard included on this saw.

A Sawstop or similar fence could be added.
