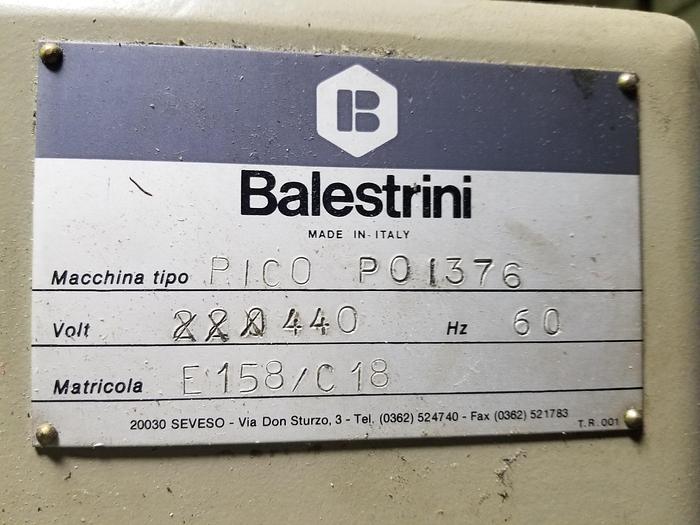

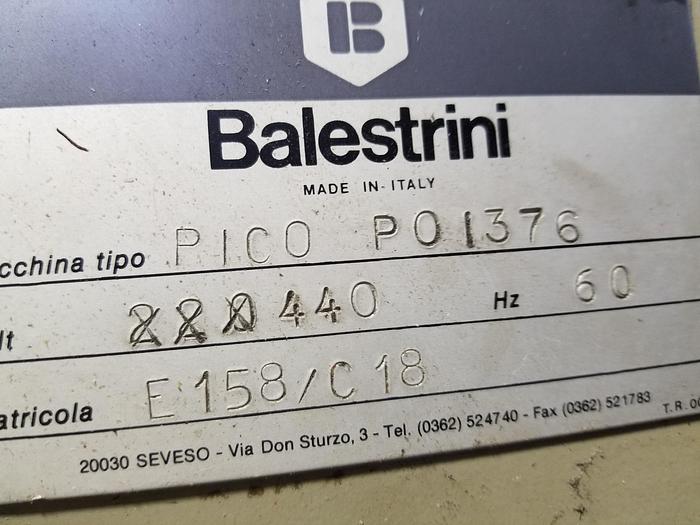

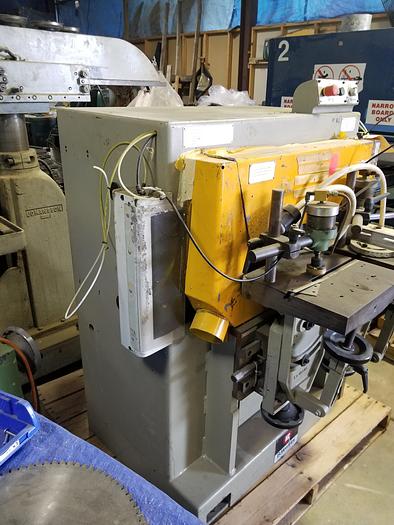

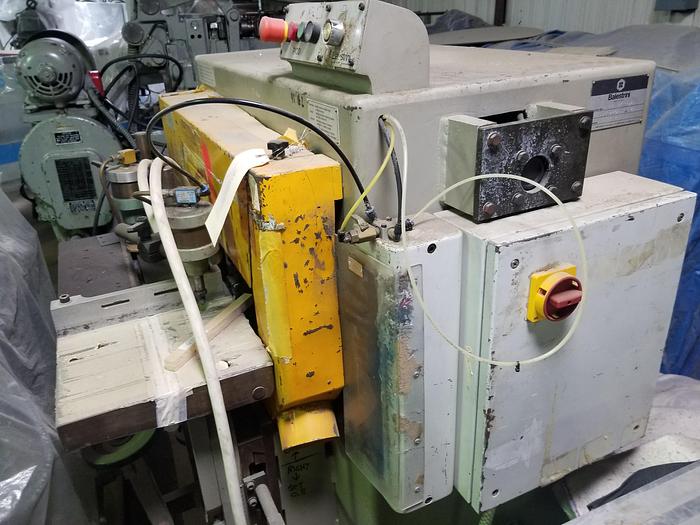

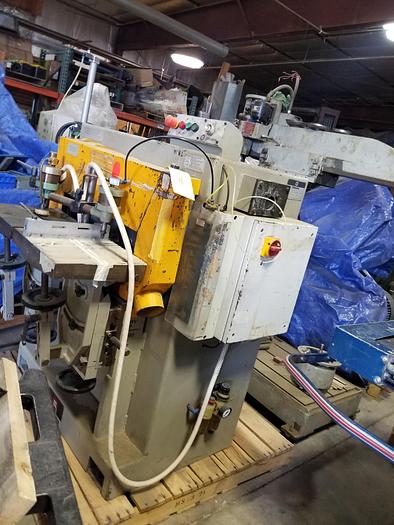

Balestrini PICO PO1376 Round End Tenoner, 440V, 3PH, For parts, Rebuilding

Balestrini Pico PO1376 Round End Tenoner, 440V, 3PH, For parts, Rebuilding

440V, 3Ph

Manufacturer specifications, subject to verification:

Heavy duty round end tenoner with patented anti splitting cycle, and twin table operation

for sequenced production.

Ability to cut tenons either vertical or horizontally with compound angles and a possibility to machine for dowels. The twin tables do not move during the work cycle assuring high precision machining. Adjustment from one tenon size to another is a very quick operation using digital setting devices.

SPECIFICATION AND STANDARD EQUIPMENT

Tenon width maximum 100mm + thickness of tenon

Tenon thickness maximum 30mm

Tenon depth maximum 50mm

2 x worktables each with pneumatic clamping and tilting to 20 degrees.

2 x workable fences with max. 45 degrees mitre angle

4hp motor with cutting speed 9,000rpm

1hp cutting cycle motor

1 x cutterblocks with hogging facility fitted with disposable cutters.

Mechanical digital readouts for easy setting of tenon thickness and length
