Cantek SPL900NDA 36″ Planer Sander, 230V, 3PH, 62 HP Combined, 4.7" Thickness Capacity

Cantek SPL900NDA 36″ Planer Sander, 230V, 3PH, 62 HP Combined, 4.7" Thickness Capacity

$47,145 (USD)

Shipping to Most US locations is included in listed price, please inquire

Available quantity:1

orCall 920-452-4494

Description

Cantek SPL900NDA 36″ Planer Sander, 230V, 3PH, 62 HP Combined, 4.7" Thickness Capacity


Unleash Efficiency: Seamlessly Integrate Planing and Sanding in One Step.


The Cantek SPL900NDA 36” Planer Sander offers a balance of efficiency, precision, and safety features, making the SPL planer sander series ideal for consistent operation without the need for heavy-duty production capabilities. By incorporating an efficient design and user-friendly controls, the SPL900NDA sander ensures ease of use and reliable performance. The planing process before sanding enhances efficiency and extends abrasive life, optimizing material preparation. Utilizing a spiral insert cutterhead not only achieves a fine finish but also requires less horsepower compared to traditional straight knives, contributing to energy savings.


The digital thickness control allows for precise adjustment of the conveyor belt with high resolution, ensuring consistent results. Safety is paramount, with emergency devices strategically placed throughout the machine, including on the infeed, outfeed, conveyor table, and access doors. The SPL series is tailored for customers requiring a robust solution without the need for heavy-duty production capabilities or a large footprint.



Why Cantek SPL900NDA 36″ Planer Sander?


  • Robust Construction: Built for craftsmanship and to run up to 8 hours a day.


  • Rugged Horsepower: Equipped with a robust motor for efficient stock removal, precise calibration.


  • Increased Throughput: Featuring a planer head followed by two sanding heads, minimizing grit changeovers and maximizing throughput.


  • Solid Cast Iron Sanding Units: With a sturdy mounting base, providing exceptional vibration damping for optimal sanding results.


  • Variable Feed Speed Adjustment: The inverter driven variable speeds allows for precise control over the feed rate, adapting to different material types and processing requirements Independent Motors: Each sanding unit is equipped with its own motor, ensuring consistent performance and control.

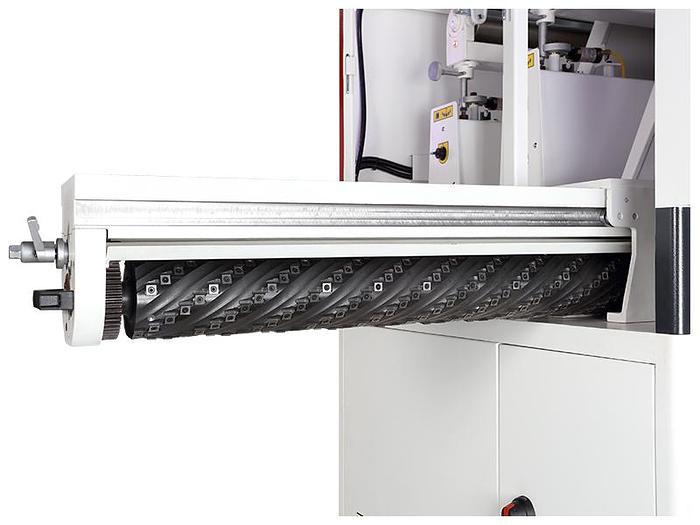

  • “N” Planer Unit: Featuring a 5” diameter cutterhead with replaceable insert knives in a spiral pattern, requiring less horsepower while delivering superior planed finishes before sanding operations.

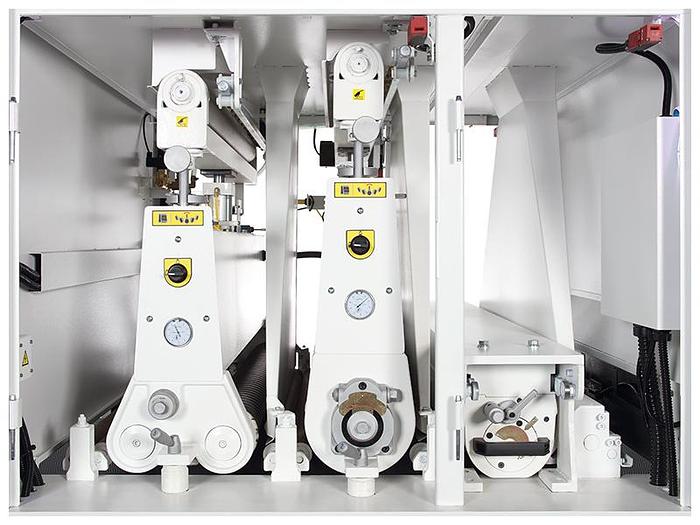

  • “D” Sanding Unit: Equipped with a 9” diameter contact drum, available in steel or rubber, for efficient and effective sanding operations tailored to your specific needs.


  • “A” Sanding Unit: Equipped with a 5” diameter combination drum with 1.8” platen. The combination sanding head features an adjustable platen, enabling seamless transitions between calibration and finish sanding operations, enhancing efficiency and workflow.



Key Advantages



  • Spiral insert knife cutterhead is capable of superior stock removal and runs extremely quiet.

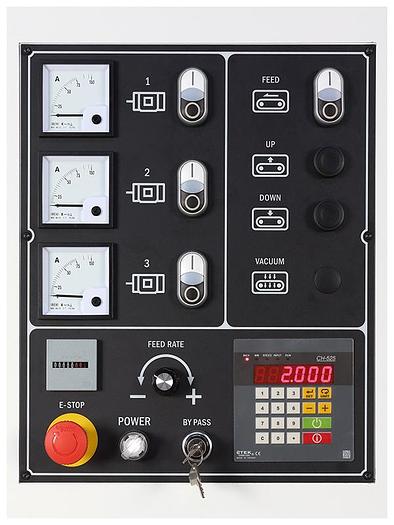

  • Digital thickness control with motorized table movement for accurate and repeatable table adjustment


  • Four precision table elevation jack screws


  • High-quality rubber conveyor belt with automatic pneumatic belt tracking

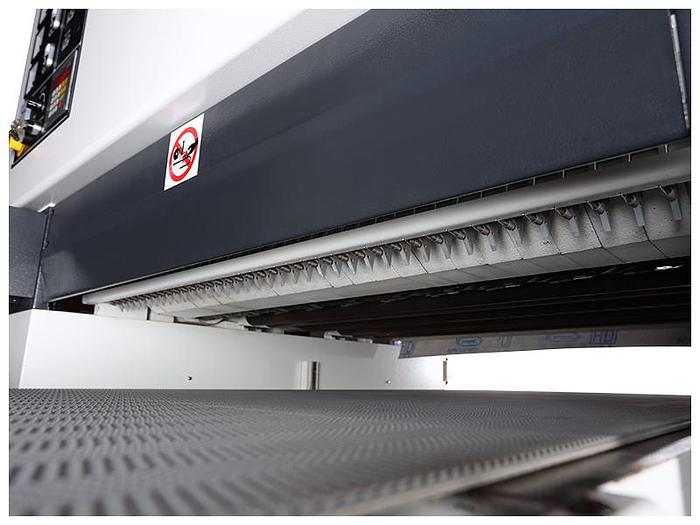

  • Rubber-covered pressure rollers on the infeed and outfeed ensure consistent material hold down


  • Electronic sanding belt tracking maintains optimal belt alignment throughout the operatiion


  • An automatic disc brake for the sanding head allows for rapid belt changeover, further minimizing downtime and improving efficiency.


  • Safety switches on all access doors enhance operator safety by preventing the machine from operating when doors are open, reducing the risk of accidents or injuries.


  • Clear Plastic Windows: Allow visual access to sanding heads, enabling operators to monitor oscillation and sanding belts without interrupting machine operation.


  • LED Indicators: A white light for normal operation and red light for error alerts, enabling constant monitoring of machine status.


  • High-quality Schneider electrical controls



Specifications



Abrasive Belt Size 37" x 75"


1st Main Motor (Planer) 30 HP


2nd Main Motor (Drum) 15 HP


3rd Main Motor (Combi) 15 HP


Feed Motor 2 HP


Table Rise / Fall Motor .25 HP


Working Width 36"


Minimum Part Length 16.9"


Maximum Thickness Opening 4.7"


Variable Feed Speed 13 to 59 FPM


Dust Outlets 8 at 5"


Compressed Air Pressure Required 85


Compressed Air Volume Required 18 CFM


Dust Collection Requirements 4,830 CFM


Dimensions 82" x 57" x 77"


Shipping Dimensions 88" x 70" x 82"


Net Weight 5,048 lbs


Shipping Weight 5,489 lbs


Electrical Requirements 230V 3 Phase, 168 FLA




















Specifications

ManufacturerCantek
ModelSPL900NDA
ConditionNew
Stock NumberSPL900NDA
