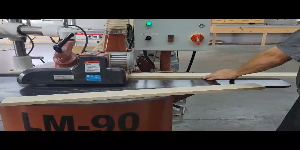

Weaver LM-90 Lock Miter, (2) 5.5HP Spindles, 7 to 86FPM, 230V, 3PH

Weaver LM-90 Lock Miter, (2) 5.5HP Spindles, 7 to 86FPM, 230V, 3PH

New machine - Please note these are built to order with some specifications or features set or customized to the user's product line. Allow 4-6 weeks for building of the machine and delivery upon order.

2- 5.5HP direct drive spindles

Inverter controlled spindles

RPM- 7000

2/3 HP power feeder

2- 3 wing insert lock miter heads

230V 3 phase (optional HYD with 110V feeder)

Can do any angle

Table size- 78” X 22”

Working height- 37 ½”

Variable feed feeder 7 to 86 FPM

Digital controls of feeder

Movement of motors on square guides.

Settings stops for feeder alignment

Front and back wings built into table.

2- 4” dust outlets

Machine size- 78”L X 37”W

Includes carbide insert cutters - diamond cutters for an additional cost

This machine was developed the about four years ago.

They are built to order in Southern Indiana and we now have over 60 machines running in the field.

We offer two models 90 degree and angle. The machine is designed with two 5.5 HP heads one for the frame and one for the panel.

Both parts are run face down for a perfect joint.

We used three wing inserts on the 90 machine and are putting 6 wing diamond heads on the angle machine.

We also offer two different cutter heads one for 1/2” and 3/4” and one for 3/4” only.

The 90 sells for $18,000.00 and the angle is $28,000.00 with the diamond heads.

The machine is built with a heavy steel top and frame.

We are using a Comatic DC-70 feeder. We cut back the second roller and remove the fifth to allow 1 1/4” frame parts.

Please feel free to contact us anytime if you have any questions.
